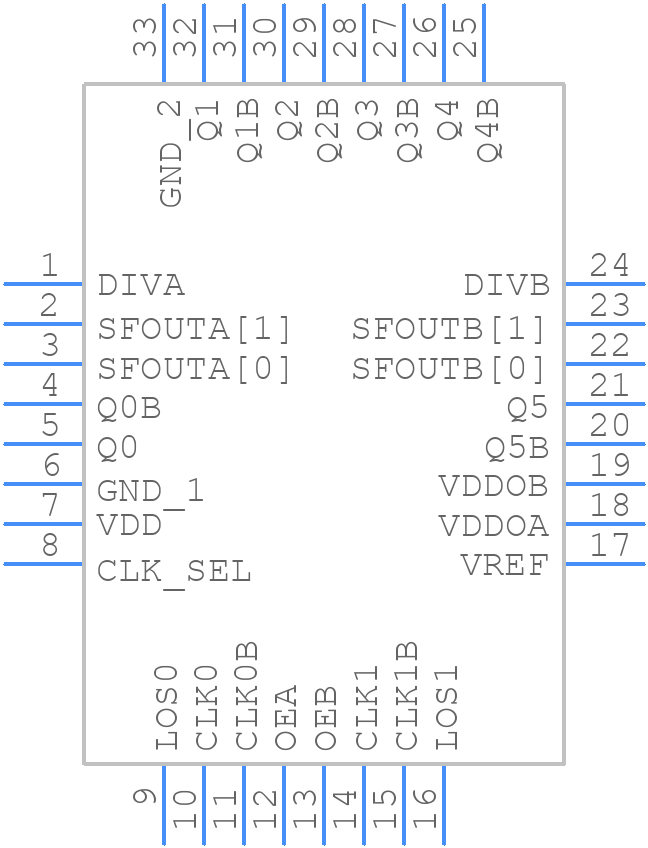

SI53301-B-GMR footprint, schematic symbol and 3D model by Skyworks

Symbol

PCB Footprints

3D Models

SI53301-B-GMR Details

The recommended PCB layout for the SI53301-B-GMR involves placing the device near the crystal oscillator, using a solid ground plane, and minimizing the distance between the device and the crystal. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
To optimize the crystal oscillator circuit for the SI53301-B-GMR, ensure that the crystal is properly matched to the device's internal impedance, and that the load capacitors are selected to provide the correct crystal load. Additionally, the circuit should be designed to minimize parasitic capacitance and inductance.
The SI53301-B-GMR can operate up to 100 MHz, but the maximum frequency range depends on the specific application and the crystal oscillator circuit design. It's recommended to consult the datasheet and application notes for specific frequency range limitations.
The SI53301-B-GMR can be configured for a specific frequency output by selecting the appropriate crystal frequency and configuring the internal PLL. The device can be programmed using the I2C interface, and the configuration depends on the specific application requirements.
The power consumption of the SI53301-B-GMR depends on the specific operating frequency and configuration. Typically, the device consumes around 10-20 mA of current, but this can vary depending on the application. It's recommended to consult the datasheet for specific power consumption information.
