SI53306-B-GMR - Skyworks

Description: Clock Buffer 1:4 Universal buffer/level translator (725MHz), sync. output enable (QFN16)

Download SI53306-B-GMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

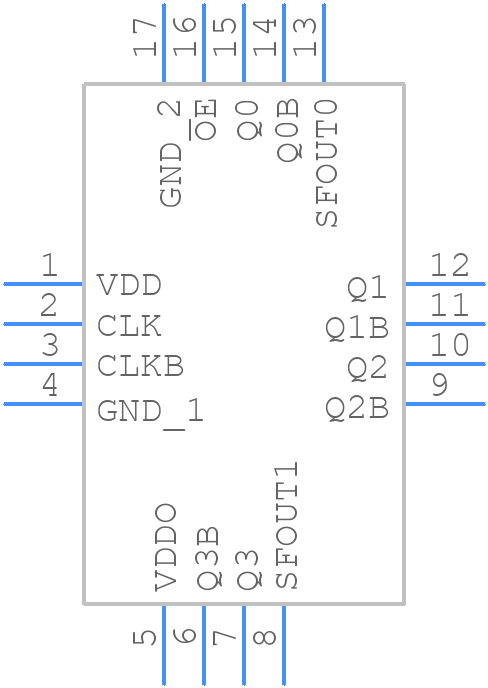

SI53306-B-GMR - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI53306-B-GMR - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-QFNA
click to zoom
3D Models
SI53306-B-GMR - Skyworks - 3D model - Quad Flat No-Lead - 16-QFNA
click to zoom

SI53306-B-GMR Details

  • Manufacturer Part Number:

    SI53306-B-GMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.6

  • Additional Feature:

    ALSO OPERATES AT 2.5 V AND 3.3 V SUPPLY

  • Family:

    53306

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    1.075 ns

  • Propagation Delay (tpd):

    1.075 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.12 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

SI53306-B-GMR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI53306-B-GMR involves placing the device near the clock source, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize power supply decoupling for the SI53306-B-GMR, use a combination of ceramic and electrolytic capacitors with different values (e.g., 0.1 μF, 1 μF, and 10 μF) placed close to the device. This helps to filter out noise and ensure a stable power supply.
  • The SI53306-B-GMR can support clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application and PCB layout. It is recommended to consult with Skyworks Solutions Inc. or a qualified engineer for specific guidance.
  • The SI53306-B-GMR can be configured using a serial interface (SPI) or a parallel interface (I2C). The device requires a specific register configuration to set the desired clock output frequency. Consult the datasheet or contact Skyworks Solutions Inc. for specific guidance on configuring the device.
  • The typical power consumption of the SI53306-B-GMR is around 150 mW, but this can vary depending on the specific application, clock frequency, and output load. Consult the datasheet or contact Skyworks Solutions Inc. for specific guidance on power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI53306-B-GMR Overview

Use the download button to access the SI53306-B-GMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI533, or try a keyword search, such as Clock Drivers
