SI53307-B-GMR - Skyworks

Description: Clock Buffer 1:2 Universal buffer/level translator (725MHz), 2:1 input mux, sync. output enable (QFN16)

Download SI53307-B-GMR Model

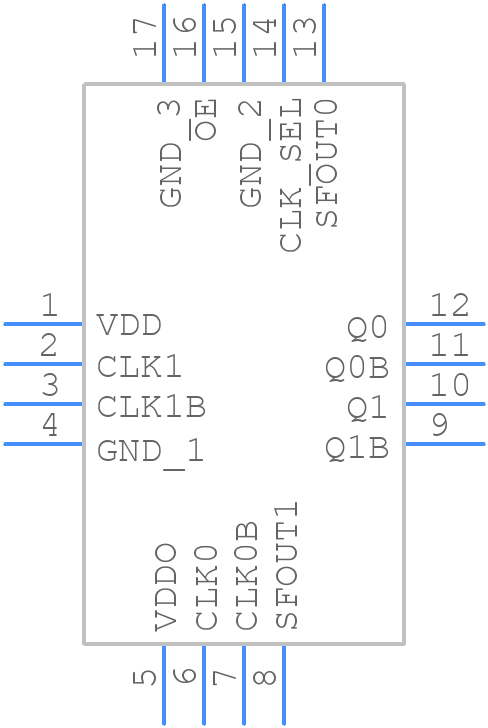

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI53307-B-GMR - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-QFNA
click to zoom
3D Models
SI53307-B-GMR - Skyworks  - 3D model - Quad Flat No-Lead - 16-QFNA
click to zoom

SI53307-B-GMR Details

  • Manufacturer Part Number:

    SI53307-B-GMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.6

  • Additional Feature:

    ALSO OPERATES AT 2.5 V AND 3.3 V SUPPLY

  • Family:

    53307

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    1.075 ns

  • Propagation Delay (tpd):

    1.075 ns

  • Same Edge Skew-Max (tskwd):

    0.12 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

SI53307-B-GMR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Follow the datasheet's recommended land pattern and thermal pad connection.
  • Use a combination of high-frequency and low-frequency capacitors (e.g., 100nF and 10uF) as close to the device as possible. Ensure the power supply lines are well-filtered and decoupled to minimize noise and ripple.
  • A clock input signal with a minimum amplitude of 200mVpp and a rise/fall time of <1ns is recommended. Ensure the clock signal is clean and free of noise to prevent jitter and phase noise.
  • Use a controlled impedance transmission line (e.g., 50Ω) for output signals. Ensure proper signal termination and use EMI-reducing techniques like shielding, grounding, and filtering.
  • The SI53307-B-GMR operates from -40°C to 85°C. Temperature affects the device's frequency accuracy, phase noise, and jitter. Ensure proper thermal management and consider temperature compensation for critical applications.
