Skyworks provides a recommended PCB layout and thermal management guide in their application note AN-2023, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
The SI53314-B-GM can be configured using the I2C interface to set the desired frequency output. Skyworks provides a software tool, the Si53314 Eval Board Software, which allows users to configure the device and monitor its performance. The tool is available for download on the Skyworks website.
The maximum output power of the SI53314-B-GM is 10 dBm, and the maximum output current is 20 mA. However, the actual output power and current capability may vary depending on the specific application and operating conditions.
To ensure the device meets the required jitter and phase noise specifications, it is essential to follow the recommended PCB layout and thermal management guidelines, as well as to use a high-quality crystal oscillator and a stable power supply. Additionally, Skyworks provides a phase noise and jitter calculator tool to help users estimate the device's performance.
The SI53314-B-GM has an operating temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, and it is recommended to operate the device within the recommended temperature range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI53314-B-GM Overview

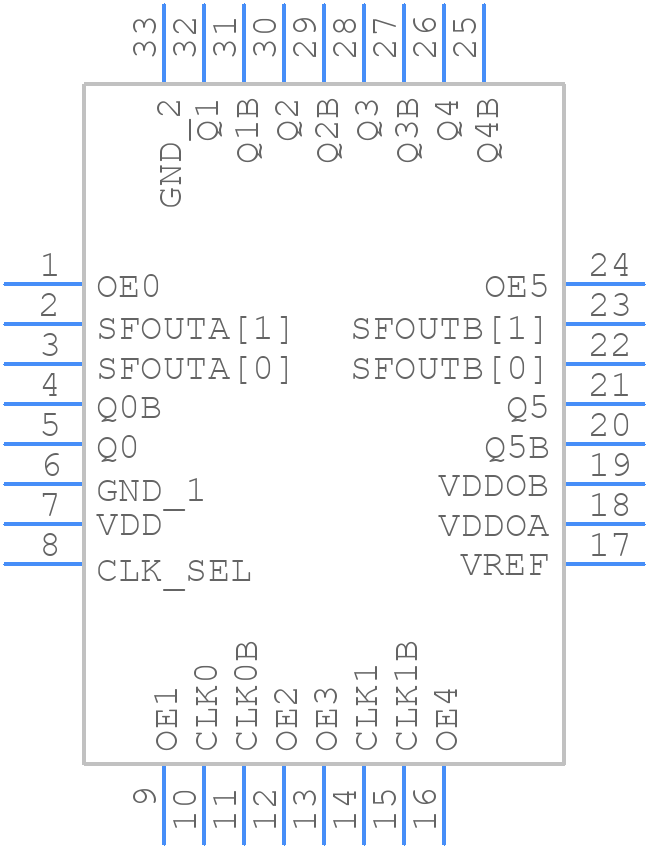

Use the download button to access the SI53314-B-GM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI533,
or try a keyword search, such as Clock Drivers
