IT ALSO REQUIRES 2.5V AND 3.3 V NOMINAL SUPPLY VOLTAGE
JESD-30 Code:
S-XQCC-N32
Length:
5 mm
Number of Terminals:
32
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Clock Frequency-Max:
333.33 MHz
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Primary Clock/Crystal Frequency-Nom:
250 MHz
Screening Level:
AEC-Q100; AEC-Q006
Seated Height-Max:
0.9 mm
Supply Current-Max:
70 mA
Supply Voltage-Max:
3.46 V
Supply Voltage-Min:
1.71 V
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
5 mm
uPs/uCs/Peripheral ICs Type:
CLOCK GENERATOR, PROGRAMMABLE
SI5332A-D-AM1 Frequently Asked Questions (FAQs)
The recommended PCB layout for the SI5332A-D-AM1 involves placing the device near the clock source, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize power supply decoupling for the SI5332A-D-AM1, use a combination of ceramic and electrolytic capacitors with different values (e.g., 0.1 μF, 1 μF, and 10 μF) placed close to the device. This helps to filter out noise and ensure a stable power supply.
The SI5332A-D-AM1 can support clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application and PCB layout. It is recommended to consult with Skyworks Solutions Inc or a qualified engineer for specific guidance.
The SI5332A-D-AM1 can be configured using a serial interface (SPI or I2C) to set the desired clock output frequency. The device has a built-in PLL that can be programmed to generate a specific frequency based on the input clock frequency and the desired output frequency.
The typical power consumption of the SI5332A-D-AM1 is around 150 mW, but this can vary depending on the specific application, clock frequency, and output load. It is recommended to consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5332A-D-AM1 Overview

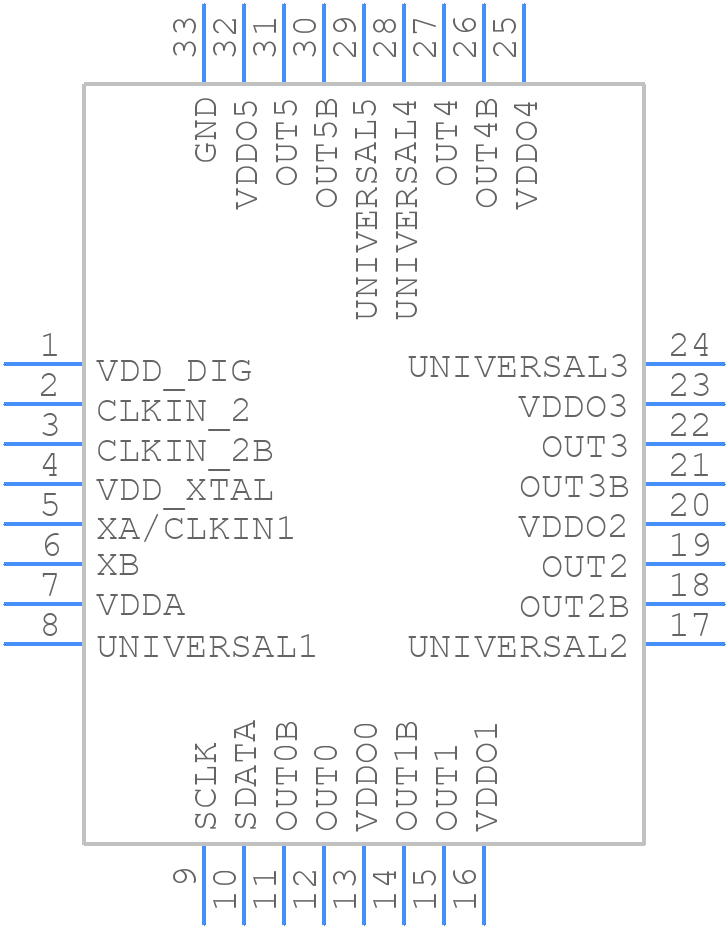

Use the download button to access the SI5332A-D-AM1 schematic symbol, PCB footprint, and 3D model.
