SI5332A-D-AM2 - Skyworks

Description: Clock Generator 10MHz to 250MHz-IN 333.33MHz-OUT Automotive

Download SI5332A-D-AM2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

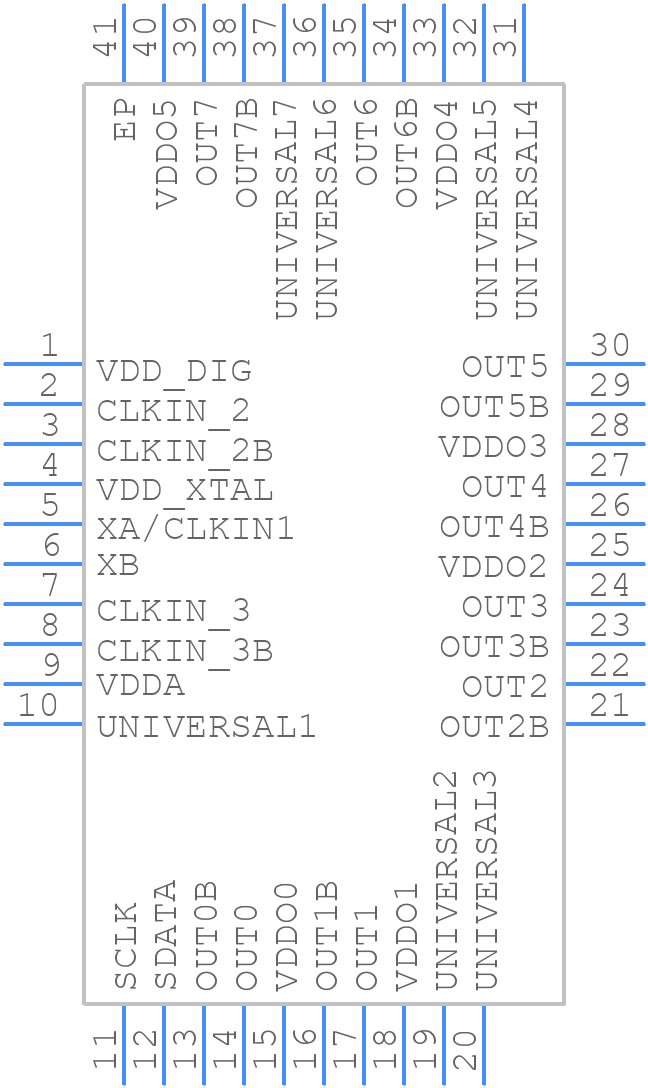

Symbol
SI5332A-D-AM2 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI5332A-D-AM2 - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Pin Quad Flat No-Lead (QFN)
click to zoom
3D Models
SI5332A-D-AM2 - Skyworks - 3D model - Quad Flat No-Lead - 40-Pin Quad Flat No-Lead (QFN)
click to zoom

SI5332A-D-AM2 Details

  • Manufacturer Part Number:

    SI5332A-D-AM2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.75

  • Additional Feature:

    IT ALSO REQUIRES 2.5V AND 3.3 V NOMINAL SUPPLY VOLTAGE

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    333.33 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    250 MHz

  • Screening Level:

    AEC-Q100; AEC-Q006

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROGRAMMABLE

SI5332A-D-AM2 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI5332A-D-AM2 can be found in the Skyworks Solutions application note AN40443, which provides guidelines for PCB design, component placement, and thermal management.
  • The SI5332A-D-AM2 can be configured using the Skyworks Solutions ClockBuilder Pro software tool, which allows users to select the desired frequency output and generate the corresponding register settings.
  • The maximum output frequency of the SI5332A-D-AM2 is 1.4 GHz, but it can be limited by the specific output configuration and load conditions. Refer to the datasheet for more information on output frequency limitations.
  • Yes, the SI5332A-D-AM2 can be used in a redundant clocking system, as it has a built-in hitless switching feature that allows for seamless switching between two clock sources in the event of a failure.
  • The power consumption of the SI5332A-D-AM2 depends on the specific operating conditions, but typical power consumption is around 350 mW. Refer to the datasheet for more information on power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI5332A-D-AM2 Overview

Use the download button to access the SI5332A-D-AM2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI533, or try a keyword search, such as Clock Generators
