IT ALSO REQUIRES 2.5V AND 3.3 V NOMINAL SUPPLY VOLTAGE
JESD-30 Code:
S-XQCC-N32
Length:
5 mm
Number of Terminals:
32
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Clock Frequency-Max:
333.33 MHz
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Primary Clock/Crystal Frequency-Nom:
250 MHz
Screening Level:
AEC-Q100; AEC-Q006
Seated Height-Max:
0.9 mm
Supply Current-Max:
70 mA
Supply Voltage-Max:
3.46 V
Supply Voltage-Min:
1.71 V
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Technology:
CMOS
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
5 mm
uPs/uCs/Peripheral ICs Type:
CLOCK GENERATOR, PROGRAMMABLE
SI5332A-D-AM3 Frequently Asked Questions (FAQs)
The recommended PCB layout for the SI5332A-D-AM3 can be found in the Skyworks Solutions application note AN20033, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
The SI5332A-D-AM3 can be configured for a specific frequency output using the I2C interface. The device has a set of registers that can be programmed to set the output frequency, phase, and amplitude. The specific register settings can be found in the datasheet, and Skyworks Solutions also provides a software tool, the SI5332A-EVB GUI, to simplify the configuration process.
The maximum output power of the SI5332A-D-AM3 is dependent on the specific output frequency and load impedance. According to the datasheet, the device can deliver up to +10 dBm of output power into a 50-ohm load at frequencies up to 1.5 GHz. However, the actual output power may be lower depending on the specific application and operating conditions.
The SI5332A-D-AM3 requires a single 3.3V power supply and a separate voltage supply for the output stage. The device also requires a bias voltage for the internal voltage-controlled oscillator (VCO). The recommended power supply and biasing scheme can be found in the datasheet and application notes. It is also important to ensure that the power supply is clean and well-regulated to minimize noise and ensure optimal performance.
The typical phase noise performance of the SI5332A-D-AM3 is dependent on the specific output frequency and operating conditions. According to the datasheet, the device can achieve phase noise performance of -135 dBc/Hz at 1 kHz offset and -160 dBc/Hz at 10 kHz offset for a 1 GHz output frequency. However, the actual phase noise performance may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5332A-D-AM3 Overview

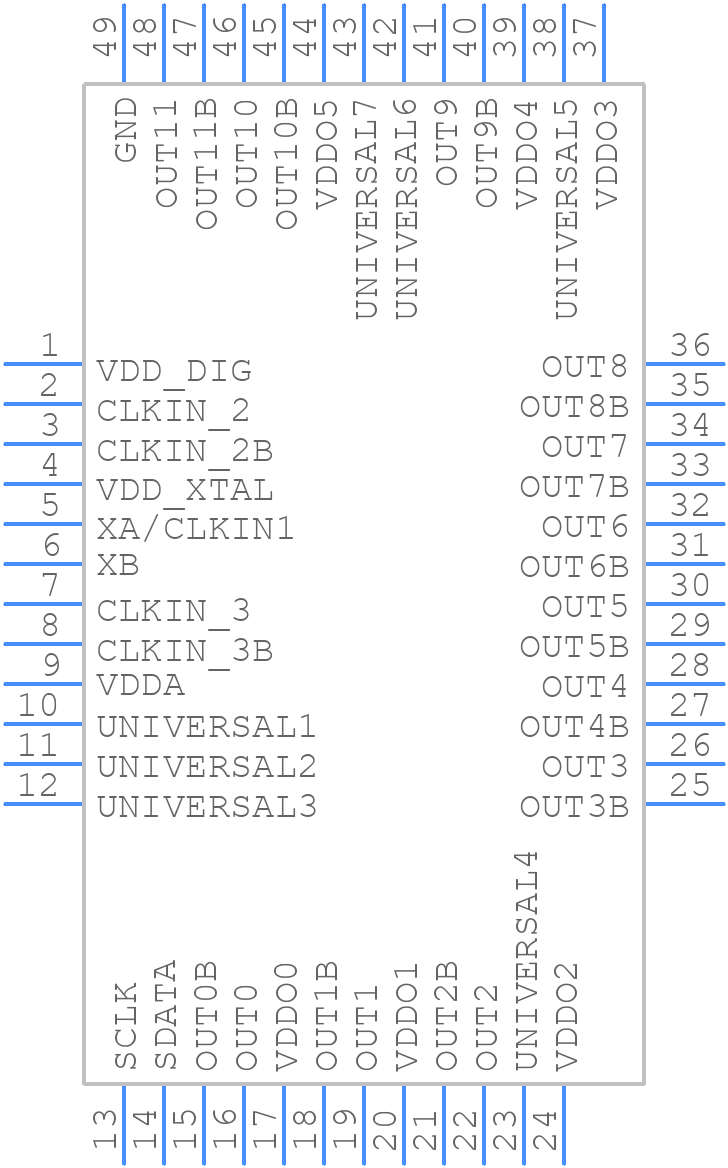

Use the download button to access the SI5332A-D-AM3 schematic symbol, PCB footprint, and 3D model.
