ALSO OPERATES AT 2.5V VCC AND 3.3V VCC NOMINAL SUPPLY
Family:
53341
Input Conditioning:
DIFFERENTIAL MUX
JESD-30 Code:
S-XQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
16
Number of True Outputs:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
3-STATE
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Propagation Delay (tpd):
1.05 ns
Same Edge Skew-Max (tskwd):
0.05 ns
Seated Height-Max:
0.9 mm
Supply Voltage-Max (Vsup):
1.89 V
Supply Voltage-Min (Vsup):
1.71 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm
SI53341-B-GM Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal performance of the SI53341-B-GM involves keeping the device as close as possible to the crystal oscillator, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The SI53341-B-GM can be configured for a specific frequency output using the device's I2C interface. The device has a set of registers that can be programmed to set the desired frequency output. The specific register settings will depend on the desired frequency output and can be found in the device's datasheet or programming guide.
The maximum clock frequency that the SI53341-B-GM can support is 1.4 GHz. However, the device can also be used to generate lower frequency clock signals, down to 10 kHz.
To ensure that the SI53341-B-GM is generating a stable clock signal, it is recommended to use a high-quality crystal oscillator, to keep the device's power supply noise to a minimum, and to use a decoupling capacitor on the device's power supply pins. Additionally, the device's clock signal can be monitored using a clock signal analyzer or a oscilloscope to verify its stability.
Yes, the SI53341-B-GM can be used in a redundant clocking system. The device has a set of features that make it suitable for use in redundant clocking systems, including a clock signal monitoring feature that can detect clock signal failures and switch to a backup clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI53341-B-GM Overview

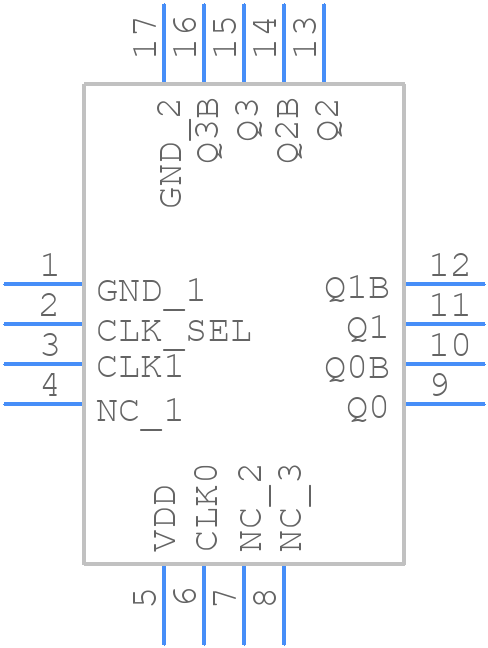

Use the download button to access the SI53341-B-GM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI533,
or try a keyword search, such as Clock Drivers
