SI53344-B-GM - Skyworks

Description: Clock Fanout Buffer (Distribution), Multiplexer IC 2:10 1.25 GHz 32-VFQFN Exposed Pad

Download SI53344-B-GM Model

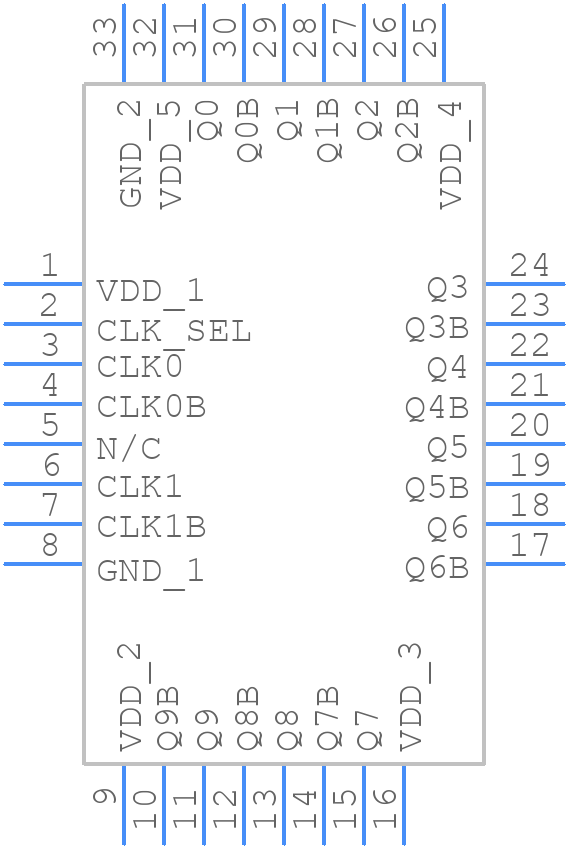

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI53344-B-GM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin QFN_2023
click to zoom
3D Models
SI53344-B-GM - Skyworks  - 3D model - Quad Flat No-Lead - 32-Pin QFN_2023
click to zoom

SI53344-B-GM Details

  • Manufacturer Part Number:

    SI53344-B-GM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.6

  • Additional Feature:

    ALSO OPERATES AT 2.5V VCC AND 3.3V VCC NOMINAL SUPPLY

  • Family:

    53344

  • Input Conditioning:

    DIFFERENTIAL MUX

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Propagation Delay (tpd):

    1.05 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

SI53344-B-GM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. Follow the datasheet's recommended land pattern and thermal pad connection.
  • The device requires a single 3.3V power supply. Ensure a clean and stable power supply with minimal noise and ripple. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The device is rated for operation up to 105°C. However, high temperatures can affect the device's performance and reliability. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • Use a high-speed oscilloscope to measure the clock signal's amplitude, frequency, and jitter. Check the device's output impedance and termination. Verify the power supply and decoupling capacitors. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The device is designed to meet EMI and RFI standards. Ensure proper PCB layout, grounding, and shielding. Follow the datasheet's guidelines for output termination and filtering. Consult with a qualified EMI/RFI expert for specific compliance testing and certification.
