SI53362-B-GM - Skyworks

Description: Clock Buffer LVCMOS 2:12 buffer (200 MHz), 2:1 LVCMOS input max, output enable (QFN24)

Download SI53362-B-GM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

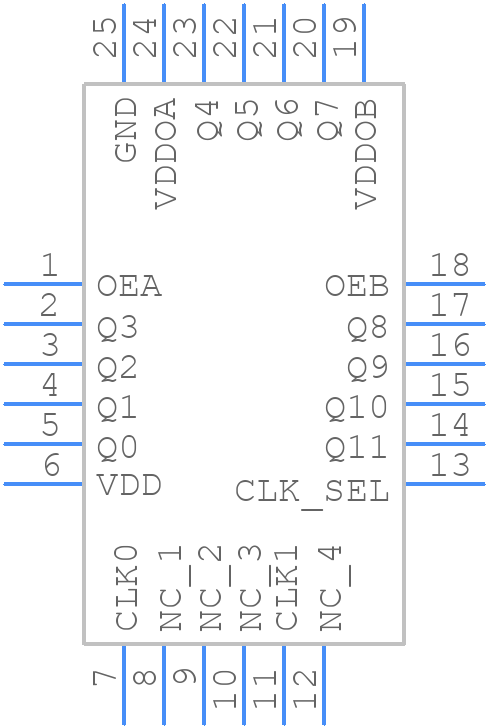

Symbol
SI53362-B-GM - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI53362-B-GM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN_2024
click to zoom
3D Models
SI53362-B-GM - Skyworks - 3D model - Quad Flat No-Lead - 24-Pin QFN_2024
click to zoom

SI53362-B-GM Details

  • Manufacturer Part Number:

    SI53362-B-GM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES AT 2.5V VCC AND 3.3V VCC NOMINAL SUPPLY

  • Family:

    53362

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    4.5 ns

  • Same Edge Skew-Max (tskwd):

    0.125 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

SI53362-B-GM Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and thermal management guide in their application note AN2018-02, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
  • The SI53362-B-GM is a highly configurable device that requires a specific register configuration to output a desired frequency. Skyworks provides a ClockBuilder Pro software tool that allows users to generate the required register settings for their specific frequency output.
  • While the datasheet specifies a maximum output frequency of 1.5 GHz, Skyworks has confirmed that the device can be configured to output frequencies up to 2.5 GHz with proper register settings and PCB design. However, this may require additional characterization and validation.
  • The SI53362-B-GM requires a stable power supply and proper decoupling to ensure optimal performance. Skyworks recommends using a low-dropout regulator (LDO) and following the decoupling guidelines outlined in the datasheet, including the use of 0.1 μF and 10 μF capacitors.
  • The typical power consumption of the SI53362-B-GM varies depending on the output frequency and configuration. However, according to Skyworks, the typical power consumption is around 150-200 mW at 1.5 GHz output frequency.
