Skyworks provides a recommended PCB layout and thermal management guide in their application note AN20035, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
The SI53365-B-GTR can be configured using the I2C interface to set the desired frequency output. Skyworks provides a software tool, the Si53365 Eval Kit, which allows users to configure the device and generate the necessary I2C commands. Additionally, the datasheet provides a detailed description of the I2C register map and configuration options.
The maximum output power and current capability of the SI53365-B-GTR depend on the specific output frequency and load impedance. According to the datasheet, the device can deliver up to 10 dBm output power and 20 mA output current per output. However, it's recommended to consult with Skyworks' application engineers or refer to the device's thermal and power derating guidelines to ensure safe operation.
The SI53365-B-GTR datasheet provides typical jitter and phase noise performance characteristics. However, to ensure the device meets specific requirements, it's recommended to consult with Skyworks' application engineers or request custom testing and characterization. Additionally, the device's performance can be optimized by adjusting the internal PLL settings and using external filtering components.
The SI53365-B-GTR datasheet recommends specific input and output termination schemes to ensure optimal performance and signal integrity. For example, the datasheet suggests using a 50 Ω input termination resistor and a 50 Ω output termination resistor in series with a 10 nF capacitor. However, the optimal termination scheme may vary depending on the specific application and PCB layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI53365-B-GTR Overview

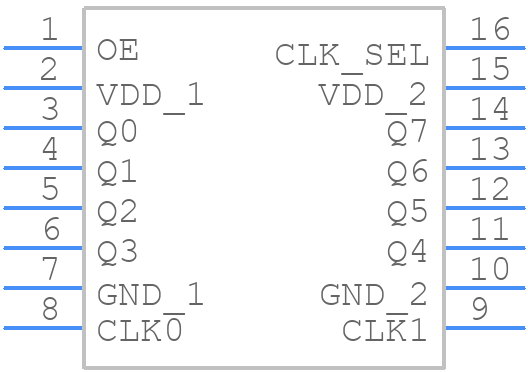

Use the download button to access the SI53365-B-GTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI533,
or try a keyword search, such as Clock Drivers
