SI5340B-D-GM - Skyworks

Description: Clock Generators & Support Products Ultra low-jitter, 4-output, any-frequency (< 350 MHz), any output clock generator

Download SI5340B-D-GM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

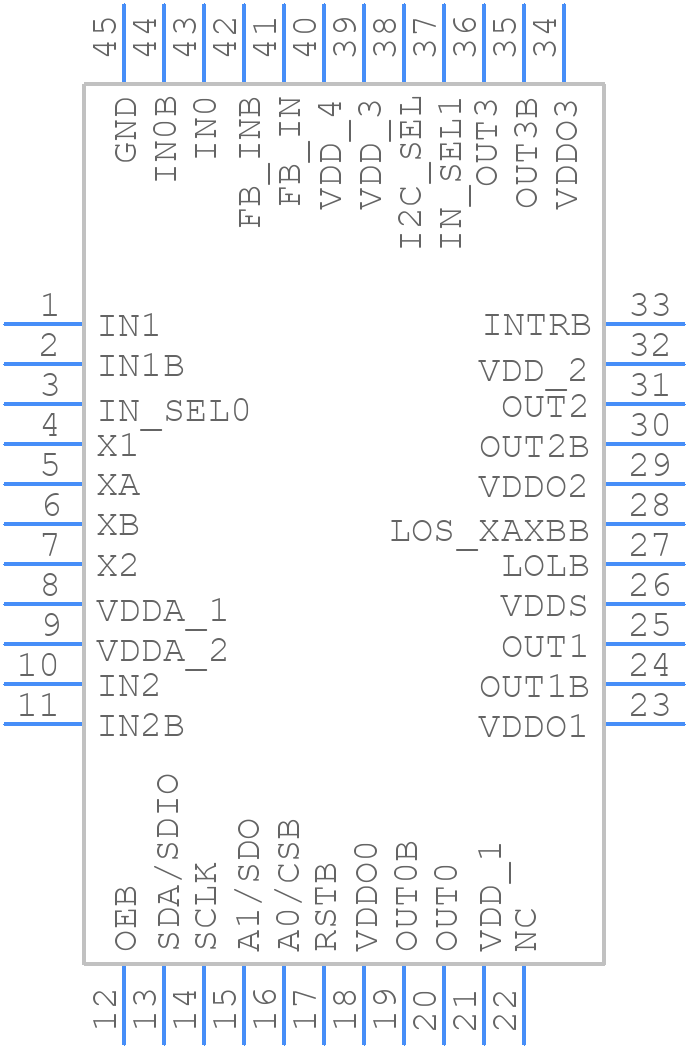

SI5340B-D-GM - Skyworks - PCB symbol
click to zoom
PCB Footprints

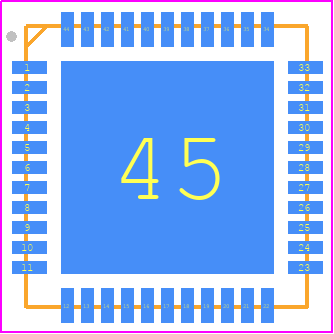

SI5340B-D-GM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 44-Pin Quad Flat No-Lead (QFN)
click to zoom
3D Models
SI5340B-D-GM - Skyworks - 3D model - Quad Flat No-Lead - 44-Pin Quad Flat No-Lead (QFN)
click to zoom

SI5340B-D-GM Details

  • Manufacturer Part Number:

    SI5340B-D-GM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.75

  • Additional Feature:

    ALSO OPERATES WITH 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N44

  • Length:

    7 mm

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    750 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    230 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI5340B-D-GM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the Skyworks Solutions Inc. ClockBuilder Pro software to generate a configuration file that can be loaded into the device. The software allows you to select the desired frequency, output format, and other parameters.
  • The maximum output frequency of the SI5340B-D-GM is 1.5 GHz. However, the device can be configured to output frequencies up to 2.5 GHz with reduced performance and increased power consumption.
  • Use the device's synchronization input (SYNC_IN) to synchronize multiple devices. Connect the SYNC_OUT of one device to the SYNC_IN of the next device, and so on. Ensure that the devices are configured to use the same reference clock and frequency.
  • The power consumption of the SI5340B-D-GM varies depending on the output frequency and configuration. Typical power consumption is around 1.2W at 1.5 GHz output frequency. Refer to the datasheet for more information.
