SI5340B-D-GMR - Skyworks

Description: Clock Generator 10MHz to 750MHz-IN 350MHz-OUT 44-Pin QFN EP T/R

Download SI5340B-D-GMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

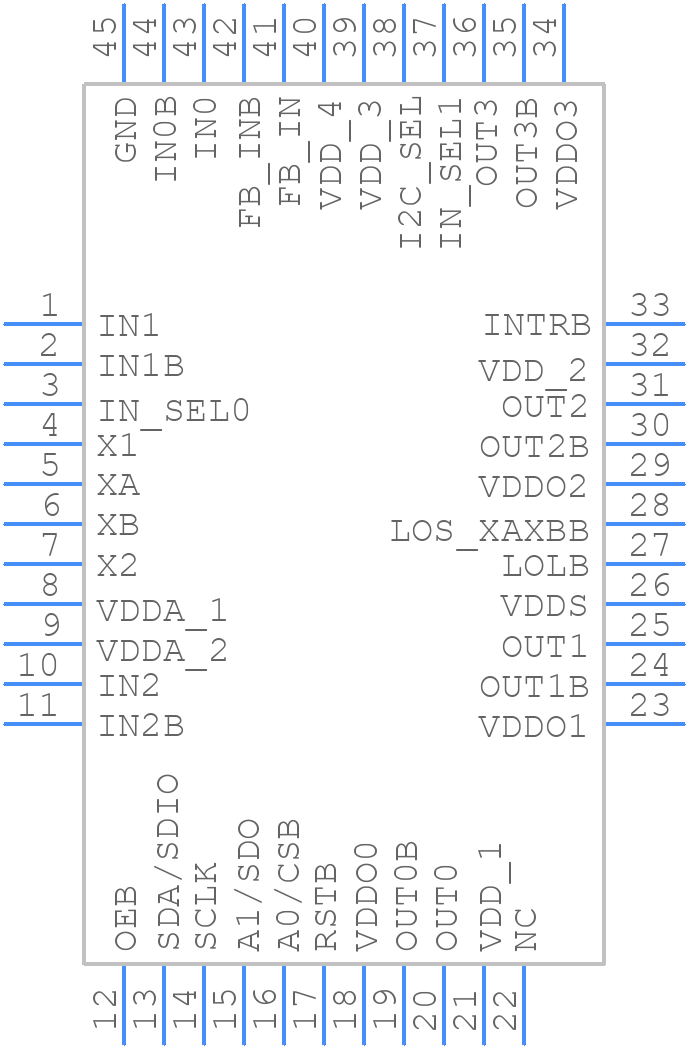

SI5340B-D-GMR - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI5340B-D-GMR - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Si5342 7x7 mm 44-QFN
click to zoom
3D Models
SI5340B-D-GMR - Skyworks - 3D model - Quad Flat No-Lead - Si5342 7x7 mm 44-QFN
click to zoom

SI5340B-D-GMR Details

  • Manufacturer Part Number:

    SI5340B-D-GMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.75

  • Additional Feature:

    ALSO OPERATES WITH 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N44

  • Length:

    7 mm

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Primary Clock/Crystal Frequency-Nom:

    750 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    230 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI5340B-D-GMR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the Skyworks Solutions Inc. ClockBuilder Pro software to generate a configuration file that can be loaded into the device. The software allows you to select the desired frequency, output format, and other parameters.
  • The maximum output frequency of the SI5340B-D-GMR is 1.5 GHz. However, the device can be configured to output frequencies up to 2.5 GHz with reduced performance and increased power consumption.
  • Yes, the SI5340B-D-GMR can be used in a redundant clocking system. The device has a built-in hitless switching feature that allows it to seamlessly switch between two input clocks in the event of a failure.
  • The power consumption of the SI5340B-D-GMR varies depending on the output frequency and format. Typical power consumption is around 1.2W at 1.5 GHz output frequency.
