SI5341A-D-GMR - Skyworks

Description: Clock Generators & Support Products Ultra low-jitter, 10-output, any-frequency (< 1028 MHz), any output clock generator

Download SI5341A-D-GMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SI5341A-D-GMR - Skyworks - PCB symbol
click to zoom
PCB Footprints

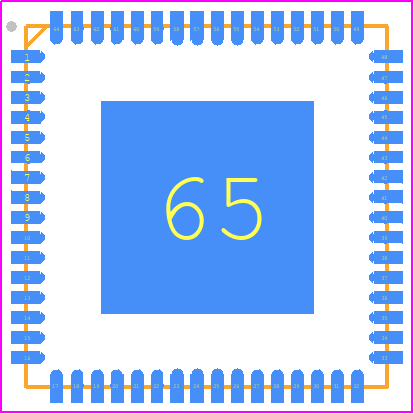

SI5341A-D-GMR - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 64-Pin Quad Flat No-Lead (QFN)_2023
click to zoom
3D Models
SI5341A-D-GMR - Skyworks - 3D model - Quad Flat No-Lead - 64-Pin Quad Flat No-Lead (QFN)_2023
click to zoom

SI5341A-D-GMR Details

  • Manufacturer Part Number:

    SI5341A-D-GMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.75

  • Additional Feature:

    ALSO OPERATES WITH 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N64

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    1028 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC64,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    750 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    230 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI5341A-D-GMR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the clock input and output traces short and away from noisy signals. Use a common mode filter or a pi-filter to reduce noise and EMI.
  • Use the Skyworks Solutions Inc. ClockBuilder Pro software to generate a configuration file that can be loaded into the device. The software allows you to select the desired frequency, output format, and other parameters.
  • The SI5341A-D-GMR can tolerate up to ±50 ppm frequency deviation for the input clock signal. However, it's recommended to keep the input clock frequency within ±20 ppm for optimal performance.
  • Yes, the SI5341A-D-GMR can be used in a redundant clocking system. The device has a built-in hitless switching feature that allows seamless switching between two input clock sources.
  • Use the ClockBuilder Pro software to monitor the device's status and configuration. Check the device's output frequency using a frequency counter or oscilloscope. Verify that the input clock signal is within the recommended specifications.
