The recommended PCB layout for the SI5342B-D-GM involves placing the device near the clock source, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To optimize the performance of the SI5342B-D-GM in a noisy environment, it is recommended to use a low-jitter clock source, add decoupling capacitors near the device, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, using a common-mode filter or a differential filter can help to reduce noise.
The maximum operating temperature range for the SI5342B-D-GM is -40°C to +85°C. However, it is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
To configure the SI5342B-D-GM for a specific clock frequency, you need to use the device's programming interface to set the desired frequency. The device can be programmed using a serial interface, such as I2C or SPI, and the frequency can be set using a combination of register settings and external resistors.
The power consumption of the SI5342B-D-GM depends on the operating frequency and the output configuration. Typically, the device consumes around 100-200 mW of power when operating at a frequency of 100 MHz. However, the actual power consumption may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5342B-D-GM Overview

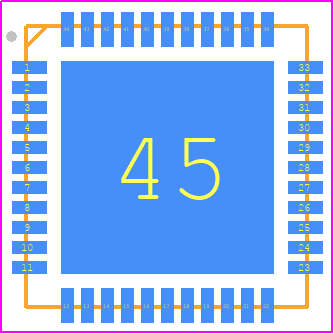

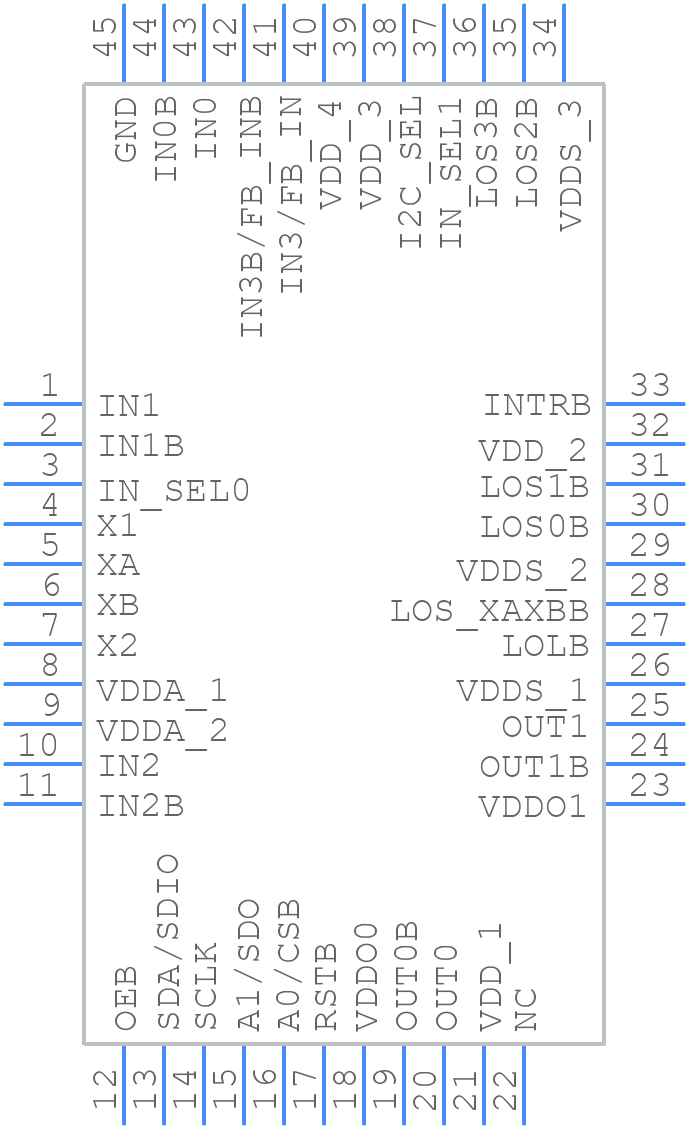

Use the download button to access the SI5342B-D-GM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI534,
or try a keyword search, such as Clock Generators
