SI5351A-B-GTR - Skyworks

Description: Clock Generator 10MHz to 100MHz-IN 160MHz-OUT 10-Pin MSOP T/R

Download SI5351A-B-GTR Model

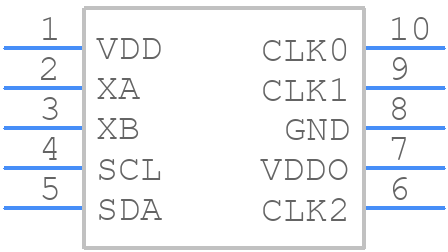

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI5351A-B-GTR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 10-MSOP Package
click to zoom
3D Models
SI5351A-B-GTR - Skyworks  - 3D model - Small Outline Packages - 10-MSOP Package
click to zoom

SI5351A-B-GTR Details

  • Manufacturer Part Number:

    SI5351A-B-GTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6.93

  • Additional Feature:

    ALSO OPERATES WITH 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Primary Clock/Crystal Frequency-Nom:

    27 MHz

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    35 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

SI5351A-B-GTR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VDDO, and then the clock input. This ensures proper initialization of the device.
  • After power-up, wait for at least 10ms to allow the internal PLL to lock. You can also monitor the LOCKDET pin to ensure the PLL is locked before using the output clocks.
  • The maximum frequency range for the SI5351A-B-GTR is 10 kHz to 300 MHz. However, the actual frequency range may vary depending on the specific application and output configuration.
  • Use the I2C interface to program the device's registers to set the desired output frequency. You can use the datasheet's frequency calculation formulas or a third-party calculator tool to determine the required register settings.
  • The XTAL pin is an optional input for an external crystal oscillator. If used, it provides a more accurate clock source for the internal PLL. Connect a suitable crystal oscillator circuit to the XTAL pin, and ensure the crystal frequency is within the recommended range (10 MHz to 30 MHz).
