The recommended PCB layout for the SI5356A-B-GMR involves keeping the device as close as possible to the crystal oscillator, using a solid ground plane, and minimizing the length of the clock output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing clock signals near the crystal oscillator.
To optimize power supply decoupling for the SI5356A-B-GMR, use a combination of ceramic and electrolytic capacitors with different values (e.g., 10nF, 100nF, and 1uF) placed as close as possible to the device's power pins. Additionally, use a low-ESR capacitor (e.g., 1uF) on the VDD pin to filter out high-frequency noise.
The maximum clock frequency that can be generated by the SI5356A-B-GMR is 200 MHz, but this is dependent on the specific configuration and the quality of the external crystal oscillator. In general, it's recommended to limit the clock frequency to 150 MHz or less to ensure reliable operation.
To configure the SI5356A-B-GMR for a specific clock frequency, use the device's I2C interface to program the PLL and clock divider settings. The exact configuration will depend on the desired clock frequency and the specific application requirements. Refer to the datasheet and application notes for more information.
The typical current consumption of the SI5356A-B-GMR is around 20-30 mA, depending on the specific configuration and operating frequency. However, this can vary depending on the application and the quality of the external components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5356A-B-GMR Overview

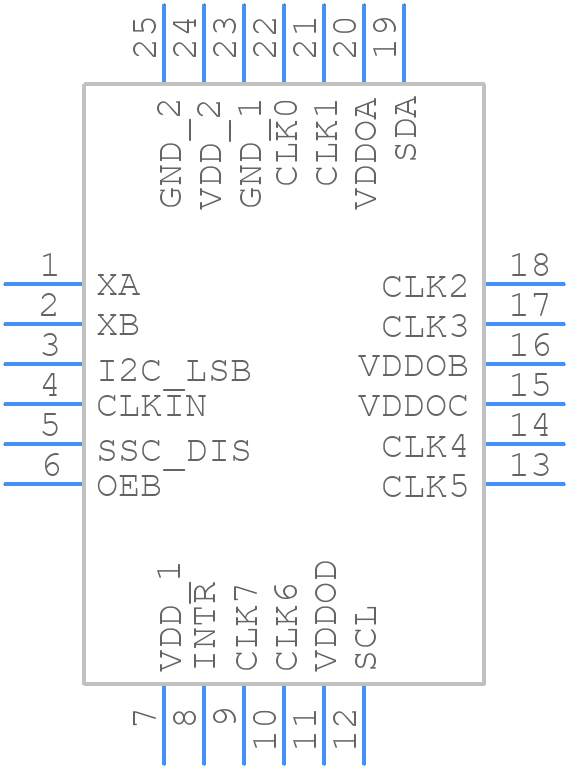

Use the download button to access the SI5356A-B-GMR schematic symbol, PCB footprint, and 3D model.
