HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, THIN, POWERPAK, CHIPFET-8
ECCN Code:
EAR99
Factory Lead Time:
12 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
5.4
Case Connection:
DRAIN
Configuration:
SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
12 A
Drain-source On Resistance-Max:
0.02 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-PDSO-N3
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
1
Number of Terminals:
3
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
P-CHANNEL
Power Dissipation-Max (Abs):
31 W
Pulsed Drain Current-Max (IDM):
40 A
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
SI5419DU-T1-GE3 Frequently Asked Questions (FAQs)
The recommended PCB footprint for the SI5419DU-T1-GE3 is a standard QFN-16 package with a 3x3mm body size and 0.5mm pitch. A recommended land pattern is available in the Vishay Intertechnologies application note or can be obtained from the manufacturer's website.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder paste with a melting point compatible with the device's temperature rating, and ensure the PCB is designed with adequate thermal relief and solder mask clearance.
The SI5419DU-T1-GE3 has a maximum junction temperature of 150°C. To ensure reliable operation, provide adequate heat dissipation through the use of thermal vias, heat sinks, or thermal interface materials. Follow the thermal management guidelines in the datasheet and application notes to ensure the device operates within its specified temperature range.
The SI5419DU-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers automotive-grade and high-reliability versions of the device with enhanced quality and reliability features. Contact Vishay Intertechnologies for more information on these specialized products.
To troubleshoot issues, start by reviewing the datasheet and application notes to ensure proper device operation and PCB design. Use oscilloscopes and logic analyzers to debug signal integrity and timing issues. If issues persist, contact Vishay Intertechnologies' technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5419DU-T1-GE3 Overview

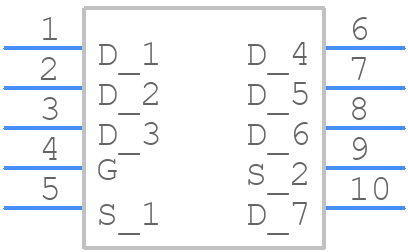

Use the download button to access the SI5419DU-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI541,
or try a keyword search, such as Power Field-Effect Transistors
