SI7900AEDN-T1-E3 - Vishay

Description: Mosfet Array 2 N-Channel (Dual) Common Drain 20V 6A 1.5W Surface Mount PowerPAK® 1212-8 Dual

Download SI7900AEDN-T1-E3 Model

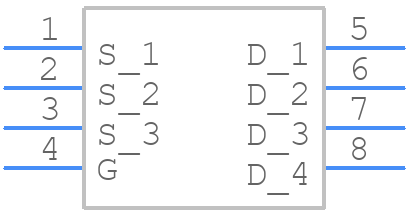

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI7900AEDN-T1-E3 - Vishay PCB footprint - Other - Other - PowerPAK® 1212-8 Single_2-3
click to zoom
3D Models
SI7900AEDN-T1-E3 - Vishay  - 3D model - Other - PowerPAK® 1212-8 Single_2-3
click to zoom

SI7900AEDN-T1-E3 Details

  • Manufacturer Part Number:

    SI7900AEDN-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, 1212-8, POWERPAK-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    COMMON DRAIN, 2 ELEMENTS WITH BUILT-IN DIODE AND RESISTOR

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    6 A

  • Drain-source On Resistance-Max:

    0.026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-XDSO-C5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    3.1 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SI7900AEDN-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SI7900AEDN-T1-E3 is a 5-pin SOT23 package with a minimum pad size of 0.8 mm x 0.8 mm and a thermal pad size of 2.5 mm x 2.5 mm.
  • To ensure proper biasing, connect the input pin (VIN) to a stable voltage source between 2.5 V and 5.5 V, and the enable pin (EN) to a logic-level signal (0 V or VIN).
  • The SI7900AEDN-T1-E3 has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of industrial and automotive applications.
  • To protect the SI7900AEDN-T1-E3 from ESD damage, use ESD-safe handling and storage procedures, and consider adding ESD protection devices, such as TVS diodes, to the PCB design.
  • The typical quiescent current (IQ) of the SI7900AEDN-T1-E3 is 10 μA, making it suitable for low-power applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI7900AEDN-T1-E3 Overview

Use the download button to access the SI7900AEDN-T1-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI790, or try a keyword search, such as Power Field-Effect Transistors

Parts related to SI7900AEDN-T1-E3

Showing 0 results

SI7900AEDN-T1-E3 Alternates

Showing results

Image Part Number Model
Part Image SI7900AEDN-T1-GE3 Vishay Siliconix

Power Field-Effect Transistor, 6A I(D), 20V, 0.026ohm, 2-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET
