SI8220BB-D-IS - Skyworks

Description: Gate Drivers 2.5 kV opto input isolated gate driver

Download SI8220BB-D-IS Model

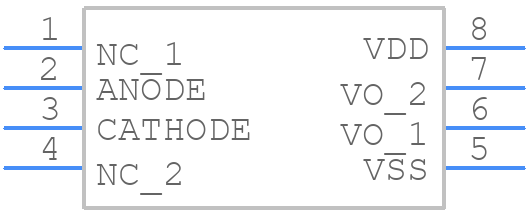

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI8220BB-D-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin Narrow Body SOIC
click to zoom
3D Models
SI8220BB-D-IS - Skyworks  - 3D model - Small Outline Packages - 8-Pin Narrow Body SOIC
click to zoom

SI8220BB-D-IS Details

  • Manufacturer Part Number:

    SI8220BB-D-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.13

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3.9 mm

SI8220BB-D-IS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A minimum of 10 mils of clearance around the device is recommended to ensure proper heat dissipation.
  • The device requires a single 3.3V power supply. Ensure that the power supply is clean and well-regulated, with minimal noise and ripple. A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling.
  • The device is rated for operation from -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C. Ensure proper heat sinking and thermal management to maintain optimal performance.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check for proper power supply voltage, decoupling, and signal integrity. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
  • The device is not designed for use in high-reliability or safety-critical applications. It is intended for general-purpose use in commercial applications. If high reliability or safety is required, consider using a device specifically designed for such applications.
