SI8230BB-D-IS - Skyworks

Description: Galvanically Isolated Gate Drivers 2.5 kV 8 V UVLO HS/LS isolated gate driver

Download SI8230BB-D-IS Model

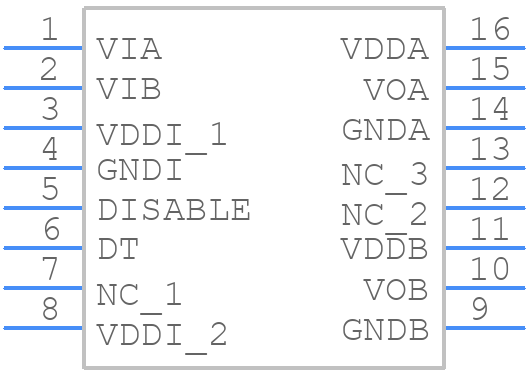

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI8230BB-D-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16-26
click to zoom
3D Models
SI8230BB-D-IS - Skyworks  - 3D model - Small Outline Packages - SOIC16-26
click to zoom

SI8230BB-D-IS Details

  • Manufacturer Part Number:

    SI8230BB-D-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8.4

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.045 µs

  • Turn-on Time:

    0.045 µs

  • Width:

    7.5 mm

SI8230BB-D-IS Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI8230BB-D-IS involves using a 4-layer board with a solid ground plane, placing the device near the edge of the board, and using short, direct traces for the input and output signals. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • To ensure reliable operation over the entire operating temperature range, it's essential to follow the recommended thermal management guidelines, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, the device should be operated within the specified power dissipation limits, and the input and output signals should be properly terminated to prevent reflections and oscillations.
  • Operating the SI8230BB-D-IS outside the specified frequency range may result in reduced performance, increased power consumption, and potential instability. The device may also exhibit non-linear behavior, and the output signal may be distorted or clipped. It's recommended to operate the device within the specified frequency range to ensure optimal performance and reliability.
  • To troubleshoot issues with the SI8230BB-D-IS, start by verifying that the device is properly powered and that the input and output signals are properly terminated. Check for any signs of overheating, and ensure that the device is operated within the specified power dissipation limits. Use an oscilloscope to monitor the input and output signals, and look for any signs of oscillations or instability. If the issue persists, consult the datasheet and application notes for guidance, or contact Skyworks Solutions Inc. for technical support.
  • The SI8230BB-D-IS is a sensitive device that requires proper ESD protection and handling. It's recommended to handle the device in an ESD-controlled environment, and to use ESD-protective packaging and materials. The device should be stored in a dry, cool place, away from direct sunlight and moisture. When handling the device, use an ESD wrist strap or mat, and avoid touching the device's pins or exposed metal surfaces.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8230BB-D-IS Overview

Use the download button to access the SI8230BB-D-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823, or try a keyword search, such as MOSFET Drivers
