The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Skyworks Solutions Inc. application note AN2011-01 for more details.
To ensure reliable operation over the entire operating temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider the thermal management of the device, and ensure that the PCB design allows for adequate heat dissipation. Refer to the datasheet for specific temperature-related specifications.
The SI8230BB-D-IS1 has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment. Avoid touching the device pins or exposed internal components.
The SI8230BB-D-IS1 is a commercial-grade device, but Skyworks Solutions Inc. offers a range of high-reliability and aerospace-grade devices. For high-reliability or aerospace applications, consider using a device that meets the specific requirements of your industry, such as the SI8230BB-D-IS2 or SI8230BB-D-IS3. Consult with Skyworks Solutions Inc. or a qualified representative for more information.
To troubleshoot issues with the SI8230BB-D-IS1, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Check the PCB layout and assembly for any errors or defects. Use oscilloscopes or logic analyzers to debug the device's input and output signals. If the issue persists, contact Skyworks Solutions Inc. or a qualified representative for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8230BB-D-IS1 Overview

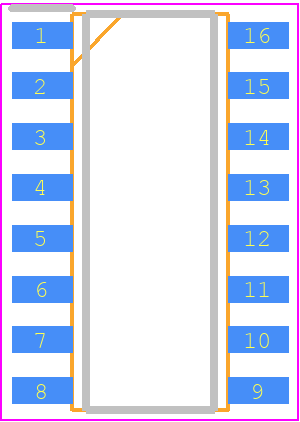

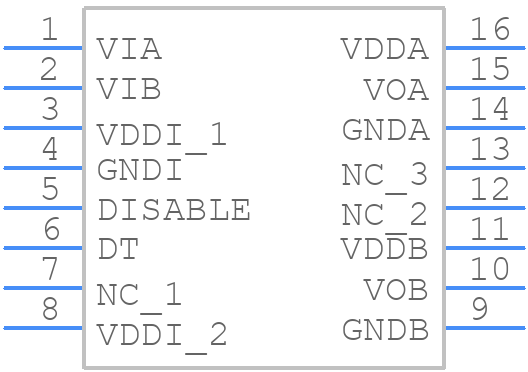

Use the download button to access the SI8230BB-D-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
