A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter out high-frequency noise.
Ensure the input voltage is within the recommended range (2.5V to 5.5V). Use a stable voltage source and decouple the input with a 10uF capacitor. The bias pin (VBIAS) should be connected to a 1.65V to 2.2V voltage source.
The maximum current rating of the SI8233BB-D-IS1 is 1.5A. However, it's recommended to operate within 80% of the maximum rating to ensure reliability and prevent overheating.
Use a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended range. Add a TVS diode or a zener diode to protect against overvoltage conditions.
Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device. The maximum junction temperature is 150°C, so monitor the temperature and take corrective action if it exceeds 120°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8233BB-D-IS1 Overview

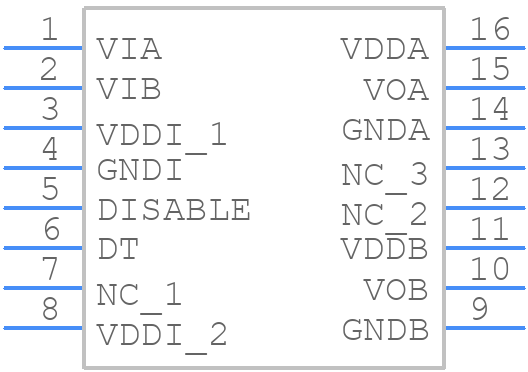

Use the download button to access the SI8233BB-D-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
