The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
Optimization involves using simulation tools like ADS or AWR to design and simulate the input and output matching networks. The goal is to achieve a conjugate match between the device's input/output impedance and the external circuitry. Skyworks provides a reference design and application notes to help with this process.
Skyworks recommends using a reflow soldering process with a peak temperature of 260°C. The device is sensitive to moisture, so a dry pack or dry storage is recommended. For assembly, a pick-and-place machine is recommended, and the device should be handled by the edges to prevent damage.
Troubleshooting involves checking the power supply, input/output matching, and PCB layout. Use a spectrum analyzer to check for spurious emissions, and an oscilloscope to check for signal integrity. Skyworks provides an application note with troubleshooting guidelines and a support team for further assistance.
The SI8233BD-D-ISR is qualified to the automotive AEC-Q100 standard, which ensures reliability and quality. Skyworks also provides a reliability report and a quality manual that outlines the manufacturing and testing processes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8233BD-D-ISR Overview

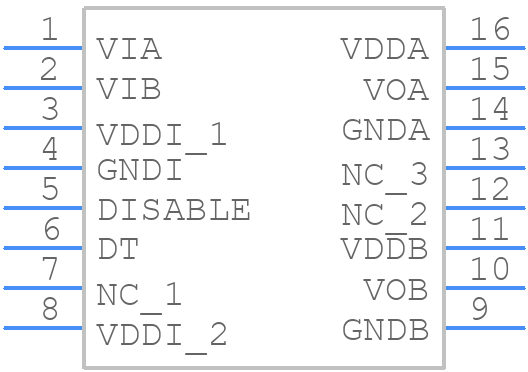

Use the download button to access the SI8233BD-D-ISR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
