The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
Use a Smith chart or simulation tools like ADS or AWR to design and optimize the input and output matching networks. Consider the device's S-parameters, operating frequency, and load impedance to achieve maximum power transfer.
Refer to the datasheet for the recommended voltage ranges and settings for the biasing and control pins. Typically, VCC is 3.3V or 5V, VEN is 1.8V or 3.3V, and VDIS is 0V or 1.8V. Ensure proper voltage sequencing and ramp-up times to prevent damage or malfunction.
Follow proper PCB layout and shielding techniques, use EMI filters or chokes, and ensure proper grounding and decoupling. Consider using a metal shield or can around the device, and follow the recommended layout and spacing guidelines.
The SI8235AB-D-IMR has undergone various reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing. Refer to the datasheet or contact Skyworks Solutions Inc for detailed information on the specific tests and results.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8235AB-D-IMR Overview

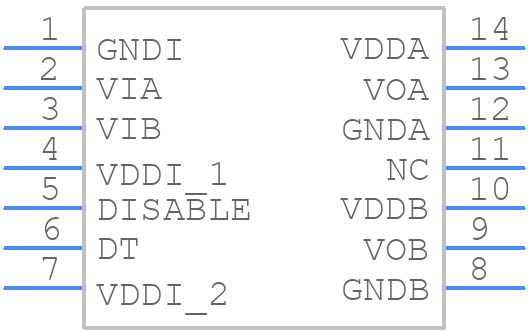

Use the download button to access the SI8235AB-D-IMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
