The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Refer to the Skyworks Solutions application note AN20060 for more details.
To ensure reliable operation over the entire operating temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal resistance. It's also recommended to perform thermal testing and validation to ensure the device operates within the specified temperature range.
The SI8261ABC-C-IPR has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Handle the device by the body or pins, avoid touching the pins, and use an ESD wrist strap or mat. Store the device in an anti-static bag or container, and avoid exposing it to high temperatures or humidity.
While the SI8261ABC-C-IPR is designed for isolated applications, it can be used in non-isolated applications with proper design considerations. However, it's essential to ensure that the device is not exposed to high voltages or currents that exceed its ratings. Additionally, the device may not provide the same level of isolation as it would in an isolated application.
To troubleshoot issues with the SI8261ABC-C-IPR, start by verifying the power supply and input/output connections. Check for proper soldering, and ensure that the device is properly seated on the PCB. Use a oscilloscope to monitor the input and output signals, and check for any signs of overheating or physical damage. Refer to the Skyworks Solutions troubleshooting guide for more detailed information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8261ABC-C-IPR Overview

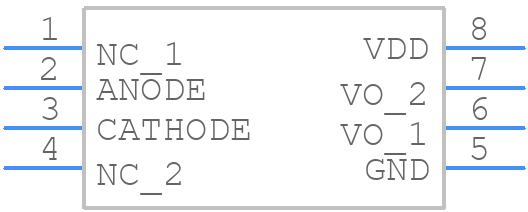

Use the download button to access the SI8261ABC-C-IPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI826,
or try a keyword search, such as MOSFET Drivers
