SI8261BAD-C-ISR - Skyworks

Description: 60 ns propagation delay, independent of input drive current

Download SI8261BAD-C-ISR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

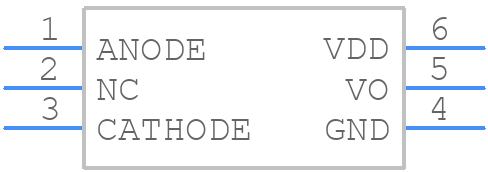

SI8261BAD-C-ISR - Skyworks - PCB symbol
click to zoom
PCB Footprints

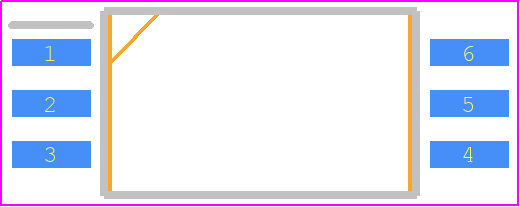

SI8261BAD-C-ISR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - SDIP6
click to zoom
3D Models
SI8261BAD-C-ISR - Skyworks - 3D model - Small Outline Packages - SDIP6
click to zoom

SI8261BAD-C-ISR Details

  • Manufacturer Part Number:

    SI8261BAD-C-ISR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    SDIP-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP6,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    4.58 mm

SI8261BAD-C-ISR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the SI8261BAD-C-ISR involves keeping the device as close to the antenna as possible, using a solid ground plane, and minimizing the length of the transmission lines. Additionally, it's recommended to use a 50-ohm microstrip or coplanar waveguide transmission line to match the device's output impedance.
  • To ensure the SI8261BAD-C-ISR is properly biased, it's essential to follow the recommended voltage and current requirements outlined in the datasheet. The device requires a 3.3V or 5V power supply, and the recommended bias current is 10mA to 20mA. Additionally, it's crucial to ensure the power supply is clean and free of noise to prevent any performance degradation.
  • The maximum operating temperature range for the SI8261BAD-C-ISR is -40°C to +85°C. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
  • To troubleshoot issues with the SI8261BAD-C-ISR, start by verifying the device is properly biased and the power supply is clean and stable. Check the PCB layout and ensure it meets the recommended guidelines. Use a spectrum analyzer or oscilloscope to measure the device's output and input signals to identify any issues. Additionally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The SI8261BAD-C-ISR is a proprietary 2.4GHz wireless transceiver, and it's not compatible with other wireless standards like Bluetooth or Wi-Fi. It's designed to operate in the 2.4GHz ISM band and is optimized for proprietary wireless applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8261BAD-C-ISR Overview

Use the download button to access the SI8261BAD-C-ISR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI826, or try a keyword search, such as MOSFET Drivers
