SI8261BCD-C-ISR - Skyworks

Description: 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing ,13.5V ~ 30V ,-40°C ~ 125°C

Download SI8261BCD-C-ISR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

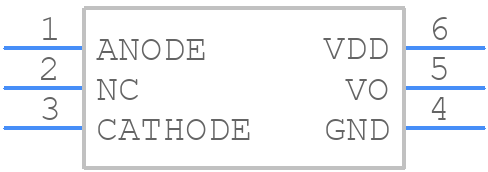

SI8261BCD-C-ISR - Skyworks - PCB symbol
click to zoom
PCB Footprints

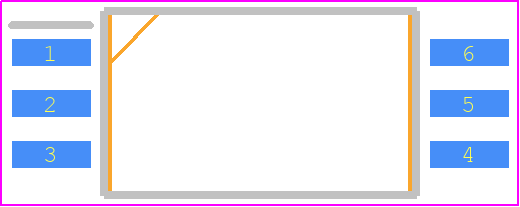

SI8261BCD-C-ISR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - SDIP6
click to zoom

SI8261BCD-C-ISR Details

  • Manufacturer Part Number:

    SI8261BCD-C-ISR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    6

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    7.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    4.58 mm

SI8261BCD-C-ISR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Ensure good thermal conductivity by using a heat sink or a thermal pad. Keep the device away from heat sources and ensure good airflow. Derate the device's power handling according to the temperature derating curve in the datasheet.
  • Use a 50-ohm termination for the input and output signals. For single-ended signals, use a 50-ohm resistor to ground. For differential signals, use a 100-ohm differential termination.
  • Use an oscilloscope to check the input and output signals. Verify the power supply voltage and current. Check for proper termination and PCB layout. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, but impedance matching is required. Use a pi-network or a series-shunt resistor network to match the impedance. Consult the datasheet and application notes for impedance matching guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8261BCD-C-ISR Overview

Use the download button to access the SI8261BCD-C-ISR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SI826, or try a keyword search, such as MOSFET Drivers
