SI8273AB-IM1 - Skyworks

Description: Isolated Gate Drivers High CMTI 2.5 kV 5 V UVLO HS/LS isolated driver

Download SI8273AB-IM1 Model

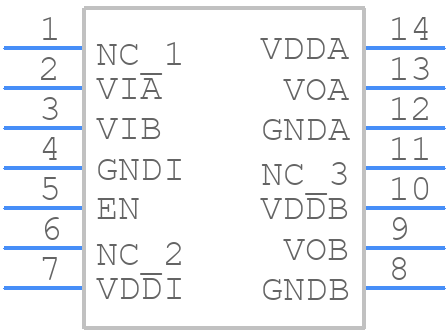

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI8273AB-IM1 - Skyworks PCB footprint - Other - Other - 14-pin DFN
click to zoom
3D Models
SI8273AB-IM1 - Skyworks  - 3D model - Other - 14-pin DFN
click to zoom

SI8273AB-IM1 Details

  • Manufacturer Part Number:

    SI8273AB-IM1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-XDSO-N14

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC14,.2,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    4.2 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    5 mm
