The recommended PCB layout for the SI8273AB-IS1 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's essential to follow the datasheet's guidelines for component placement and routing to minimize electromagnetic interference (EMI) and ensure optimal performance.
To ensure proper biasing, follow the datasheet's recommended voltage and current settings for the device. Typically, this involves applying a stable voltage supply to the VCC pin and ensuring the input voltage is within the specified range. Additionally, it's crucial to follow the recommended pin connections and decoupling capacitor values to prevent oscillations and ensure stable operation.
The SI8273AB-IS1 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, follow the datasheet's guidelines for thermal resistance and power dissipation to prevent overheating.
To troubleshoot issues with the SI8273AB-IS1, start by verifying the PCB layout and component values against the datasheet's recommendations. Check for any signs of physical damage, such as cracks or corrosion, and ensure the device is properly biased and powered. Use oscilloscopes or other diagnostic tools to measure the input and output signals, and consult the datasheet's troubleshooting section for guidance on common issues and their solutions.
Yes, the SI8273AB-IS1 is a high-frequency device and requires careful consideration of electromagnetic interference (EMI) and electromagnetic compatibility (EMC). Follow the datasheet's guidelines for shielding, grounding, and layout to minimize EMI and ensure EMC compliance. Additionally, consider using EMI filters or shielding components to reduce radiation and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8273AB-IS1 Overview

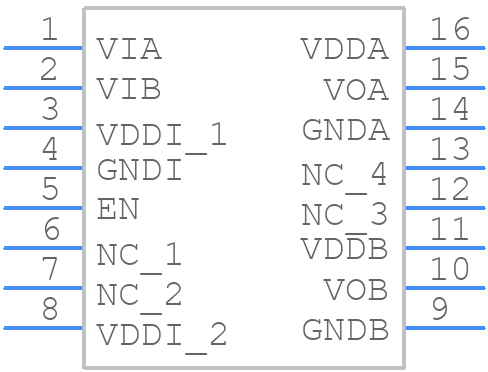

Use the download button to access the SI8273AB-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI827,
or try a keyword search, such as MOSFET Drivers
