The recommended PCB layout for the SI8273DB-IS1 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
To ensure proper biasing, the SI8273DB-IS1 requires a stable voltage supply, typically between 3.3V to 5V, and a bias current of around 10mA to 20mA. The device also requires a proper termination of the output stage, typically with a 50Ω load.
The SI8273DB-IS1 has an operating temperature range of -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
Common issues with the SI8273DB-IS1 can be troubleshooted by checking the PCB layout, ensuring proper biasing and termination, and verifying the input and output signals. Additionally, checking for any signs of overheating, such as excessive current consumption or thermal shutdown, can also help identify the root cause of the issue.
Yes, the SI8273DB-IS1 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8273DB-IS1 Overview

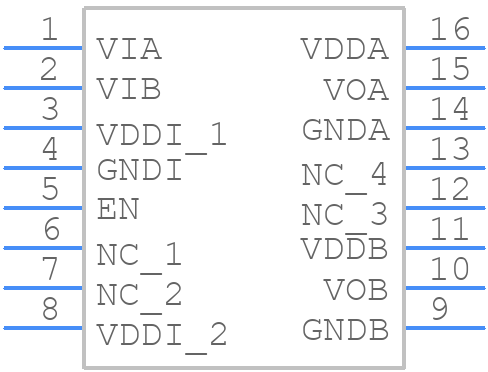

Use the download button to access the SI8273DB-IS1 schematic symbol, PCB footprint, and 3D model.
