The recommended PCB layout and thermal management for the SI8274AB4D-IM1 can be found in the Skyworks Solutions application note AN302A, which provides guidelines for PCB design, thermal management, and layout considerations to ensure optimal performance and reliability.
Skyworks Solutions provides a troubleshooting guide in their application note AN303A, which covers common issues and faults, including over-temperature, over-voltage, and under-voltage conditions, and provides guidance on how to identify and resolve these issues.
The recommended input and output capacitors for the SI8274AB4D-IM1 can be found in the Skyworks Solutions datasheet, but as a general guideline, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for input and output filtering.
To ensure EMC and EMI compliance, follow the guidelines outlined in the Skyworks Solutions application note AN301A, which provides recommendations for PCB design, component selection, and layout considerations to minimize electromagnetic radiation and susceptibility.
The recommended operating temperature range for the SI8274AB4D-IM1 is -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8274AB4D-IM1 Overview

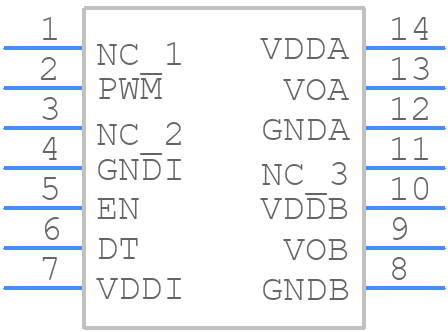

Use the download button to access the SI8274AB4D-IM1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI827,
or try a keyword search, such as MOSFET Drivers
