SI8274BB1-IS1 - Skyworks

Description: DGTL ISO 2.5KV GATE DRVR 16SOIC

Download SI8274BB1-IS1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

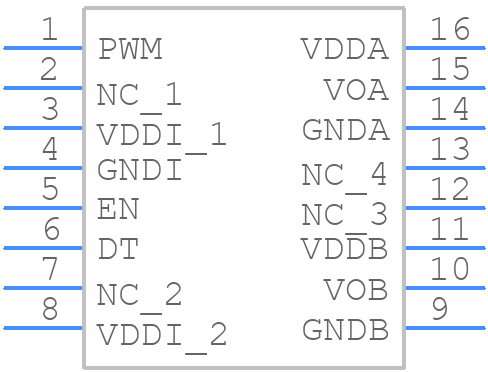

SI8274BB1-IS1 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8274BB1-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI8274BB1-IS1 - Skyworks - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI8274BB1-IS1 Details

  • Manufacturer Part Number:

    SI8274BB1-IS1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8.38

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    4.2 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.06 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    3.9 mm

SI8274BB1-IS1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the Skyworks Solutions Inc. application note AN302A, which provides guidelines for PCB design, layout, and component placement to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • To ensure reliable operation over the full temperature range, it is recommended to follow the thermal management guidelines provided in the datasheet, including keeping the junction temperature below 150°C and using a heat sink if necessary. Additionally, ensure that the device is operated within the specified voltage and current limits.
  • The recommended input/output termination for the SI8274BB1-IS1 is 50 ohms, as specified in the datasheet. This ensures optimal signal integrity and minimizes reflections.
  • The SI8274BB1-IS1 is a commercial-grade device, but Skyworks Solutions Inc. offers a range of high-reliability and aerospace-grade devices that meet the requirements of these applications. Contact Skyworks Solutions Inc. for more information on their high-reliability and aerospace-grade products.
  • The typical lead time and minimum order quantity (MOQ) for the SI8274BB1-IS1 may vary depending on the region and distributor. Contact a authorized distributor or Skyworks Solutions Inc. directly for the most up-to-date information on lead time and MOQ.
