The recommended PCB layout for the SI8275AB-IS1 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
To ensure proper biasing, the SI8275AB-IS1 requires a stable voltage supply of 3.3V or 5V, depending on the application. The device also requires a bias resistor (RBIAS) connected between the VCC pin and the GND pin to set the internal bias voltage. The recommended value for RBIAS is 1 kΩ to 10 kΩ.
The SI8275AB-IS1 is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
To troubleshoot issues with the SI8275AB-IS1, start by verifying the input voltage and current, and ensuring that the device is properly biased. Check the PCB layout for any signs of noise or EMI, and ensure that the output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and current, and look for any signs of oscillations or ringing.
Yes, the SI8275AB-IS1 is suitable for use in high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and is qualified to meet the requirements of the AEC-Q100 standard for automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

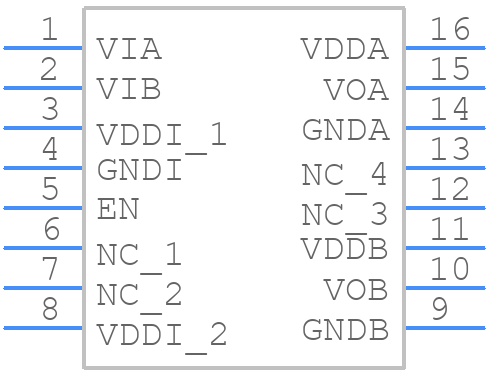

SI8275AB-IS1 Overview
Use the download button to access the SI8275AB-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI827,
or try a keyword search, such as MOSFET Drivers
