SI8275BBD-IM1 - Skyworks

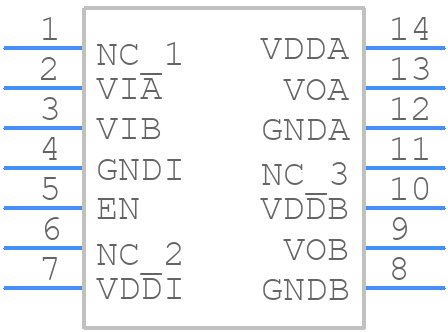

SI8275BBD-IM1 Details

• Manufacturer Part Number:

  SI8275BBD-IM1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DFN-14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Skyworks Solutions Inc

• YTEOL:

  0

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  S-XDSO-N14

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSON

• Package Equivalence Code:

  SOLCC14,.2,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.9 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  30 V

• Supply Voltage1-Min:

  4.2 V

• Supply Voltage1-Nom:

  15 V

• Surface Mount:

  YES

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Turn-off Time:

  0.075 µs

• Turn-on Time:

  0.075 µs

• Width:

  5 mm
