SI8286CC-IS - Skyworks

Description: 4A Gate Driver Capacitive Coupling 5000Vrms 1 Channel 16-SOIC

Download SI8286CC-IS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

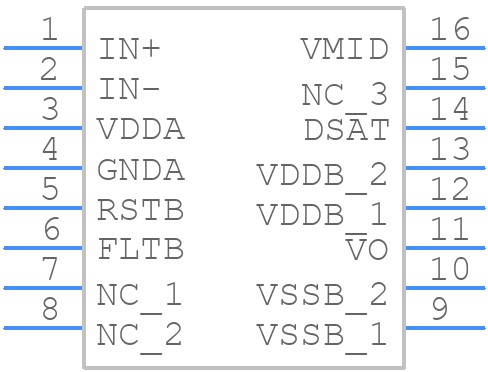

Symbol
SI8286CC-IS - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8286CC-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - soic
click to zoom
3D Models
SI8286CC-IS - Skyworks - 3D model - Small Outline Packages - soic
click to zoom

SI8286CC-IS Details

  • Manufacturer Part Number:

    SI8286CC-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.8

  • High Side Driver:

    NO

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    5.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    13.2 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    7.5 mm

SI8286CC-IS Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance of the SI8286CC-IS involves keeping the input and output traces as short as possible, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • To ensure the SI8286CC-IS is properly biased for optimal performance, make sure to follow the recommended biasing scheme outlined in the datasheet. This typically involves connecting the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. Additionally, ensure that the input and output voltage levels are within the recommended operating range.
  • The maximum operating temperature range for the SI8286CC-IS is -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To handle ESD protection for the SI8286CC-IS, it's recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding ESD protection devices such as TVS diodes or ESD protection arrays to the PCB design to protect the device from electrostatic discharge.
  • The recommended soldering profile for the SI8286CC-IS involves using a reflow soldering process with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's also recommended to follow the IPC-J-STD-020 standard for soldering electronic components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8286CC-IS Overview

Use the download button to access the SI8286CC-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI828, or try a keyword search, such as MOSFET Drivers
