SI82E29ABC-IS1 - Skyworks

Description: Gate Drivers 3.75 kV 2-channel isolated Value gate driver

Download SI82E29ABC-IS1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SI82E29ABC-IS1 model

Email notifications will be applied after download.

Send part feedback

Symbol

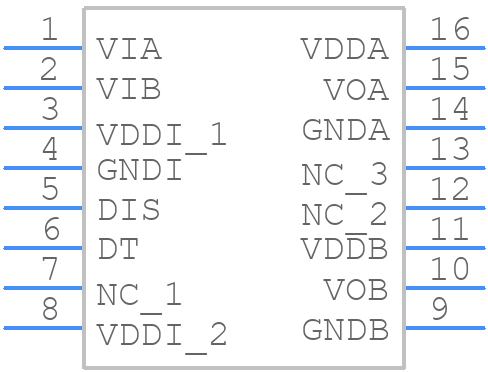

SI82E29ABC-IS1 - Skyworks - PCB symbol

PCB Footprints

SI82E29ABC-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 NB

3D Models

SI82E29ABC-IS1 - Skyworks - 3D model - Small Outline Packages - SOIC-16 NB

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI82E29ABC-IS1
Part Number SI82E29ABC-IS1
Manufacturer Skyworks
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC-16 NB
Released Date Jun 3, 2025
Last Modified Date Jun 3, 2025 8:40 AM UTC
Pinout / Pin List Click Here (Member Only)

SI82E29ABC-IS1 Details

Manufacturer Part Number:
SI82E29ABC-IS1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Skyworks Solutions Inc
YTEOL:
7
Interface IC Type:
HALF BRIDGE BASED IGBT/MOSFET DRIVER
