SI82E29AEE-IS3 - Skyworks

Description: Gate Drivers 6 kV 2-channel isolated Value gate driver , 5 V to 30 V , -40C +125C , SOIC-14

Download SI82E29AEE-IS3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SI82E29AEE-IS3 model

Email notifications will be applied after download.

Send part feedback

Symbol

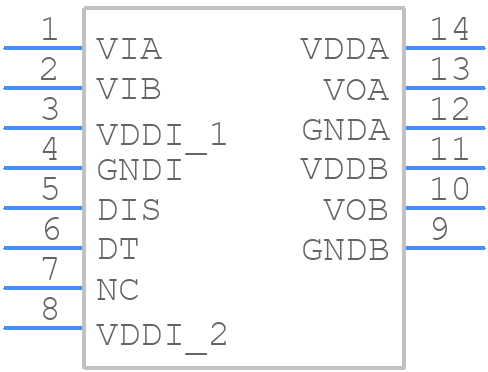

SI82E29AEE-IS3 - Skyworks - PCB symbol

PCB Footprints

SI82E29AEE-IS3 - Skyworks PCB footprint - Other - Other - WB SOIC-14_2024

3D Models

SI82E29AEE-IS3 - Skyworks - 3D model - Other - WB SOIC-14_2024

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI82E29AEE-IS3
Part Number SI82E29AEE-IS3
Manufacturer Skyworks
Pin Count 14
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - WB SOIC-14_2024
Released Date Sep 17, 2024
Last Modified Date Sep 17, 2024 4:29 AM UTC
Pinout / Pin List Click Here (Member Only)

SI82E29AEE-IS3 Details

Manufacturer Part Number:
SI82E29AEE-IS3
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Skyworks Solutions Inc
YTEOL:
7
Interface IC Type:
HALF BRIDGE BASED IGBT/MOSFET DRIVER
