SI82E99ABC-IS1 - Skyworks

Description: Wide input range of 3 to 20 V • Wide gate supply voltage of 5 to 30 V • CMOS input with an optional deglitch filter • Channel-to-channel skew < 5 ns • Dead time control and overlap protection • Universal and High-Side/Low-Side pinouts

Download SI82E99ABC-IS1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SI82E99ABC-IS1 model

Email notifications will be applied after download.

Send part feedback

Symbol

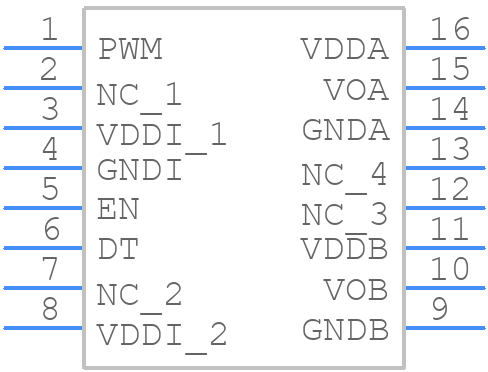

SI82E99ABC-IS1 - Skyworks - PCB symbol

PCB Footprints

SI82E99ABC-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - NBSOIC-16

3D Models

SI82E99ABC-IS1 - Skyworks - 3D model - Small Outline Packages - NBSOIC-16

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI82E99ABC-IS1
Part Number SI82E99ABC-IS1
Manufacturer Skyworks
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - NBSOIC-16
Released Date May 5, 2026
Last Modified Date May 5, 2026 8:36 AM UTC
Pinout / Pin List Click Here (Member Only)

SI82E99ABC-IS1 Details

Manufacturer Part Number:
SI82E99ABC-IS1
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Skyworks Solutions Inc
YTEOL:
7
Interface IC Type:
HALF BRIDGE BASED IGBT/MOSFET DRIVER

Trust Checks

Community Provided

System Verified

Community Approved

SI82E99ABC-IS1 Overview

Use the download button to access the SI82E99ABC-IS1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI82E, or try a keyword search, such as MOSFET Drivers
