SI83414AAA-IF - Skyworks

Description: Current Limit SW 4-IN 4-OUT to 0.7A 32-Pin DFN EP

Download SI83414AAA-IF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

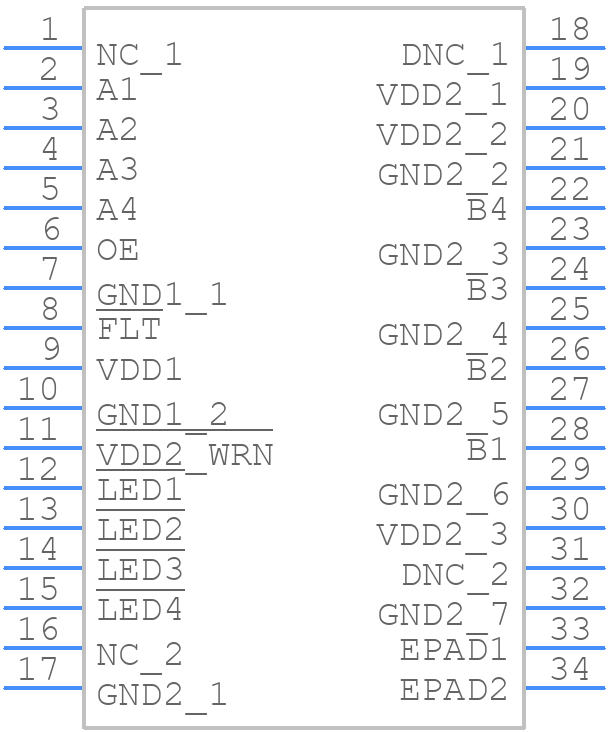

SI83414AAA-IF - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI83414AAA-IF - Skyworks PCB footprint - Other - Other - 2 PIN 9x9 DFN
click to zoom
3D Models
SI83414AAA-IF - Skyworks - 3D model - Other - 2 PIN 9x9 DFN
click to zoom

SI83414AAA-IF Details

  • Manufacturer Part Number:

    SI83414AAA-IF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7.3

  • Built-in Protections:

    OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-N32

  • Length:

    9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    0.7 A

  • Output Peak Current Limit-Nom:

    0.88 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC32,.35,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    32 V

  • Supply Voltage1-Min:

    9 V

  • Supply Voltage1-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    2.2 µs

  • Turn-on Time:

    2.1 µs

  • Width:

    9 mm

SI83414AAA-IF Frequently Asked Questions (FAQs)

  • Skyworks provides a recommended PCB layout and land pattern in their application note AN40465, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The SI83414AAA-IF has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Refer to the application note AN40465 for more details.
  • The input and output matching networks depend on the specific application and frequency range. Skyworks provides general guidelines in their application note AN40465, but it's recommended to consult with their application engineers or use simulation tools like Genesys or ADS to optimize the matching networks for your specific design.
  • The SI83414AAA-IF requires a specific biasing scheme to operate optimally. Refer to the datasheet and application note AN40465 for the recommended biasing circuit and voltage levels. Ensure that the biasing circuit is stable and well-filtered to minimize noise and ripple.
  • The SI83414AAA-IF is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and ensure that the device is stored in an anti-static package. Refer to the Skyworks ESD handling guide for more information.
