SI8605AB-B-IS1 - Skyworks

Description: Digital Isolators 2.5 kV uni- and bi-directional isolator

Download SI8605AB-B-IS1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

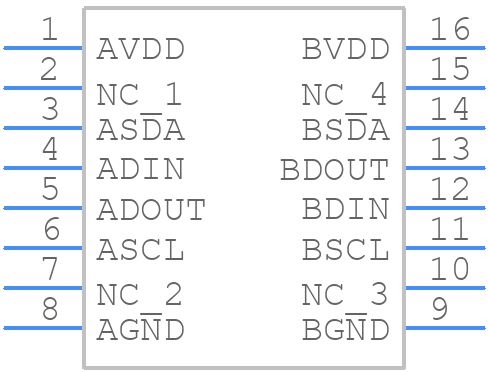

Symbol
SI8605AB-B-IS1 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8605AB-B-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI8605AB-B-IS1 - Skyworks - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI8605AB-B-IS1 Details

  • Manufacturer Part Number:

    SI8605AB-B-IS1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Additional Feature:

    ALSO OPERARTES AT 5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SI8605AB-B-IS1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Ensure good thermal management by providing adequate heat sinking and airflow. Use a thermal interface material (TIM) to improve heat transfer between the device and the heat sink. Operate the device within the recommended temperature range (-40°C to 125°C).
  • The SI8605AB-B-IS1 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
  • No, the SI8605AB-B-IS1 is designed for isolated applications only. It provides electrical isolation between the input and output, which is essential for safety and reliability in many applications.
  • The maximum allowable voltage drop across the SI8605AB-B-IS1 is 1.5V. Exceeding this voltage drop may affect the device's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8605AB-B-IS1 Overview

Use the download button to access the SI8605AB-B-IS1 schematic symbol, PCB footprint, and 3D model.
