SI8605AC-B-IS1R - Skyworks

Description: I²C Digital Isolator 3750Vrms 4 Channel 35kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)

Download SI8605AC-B-IS1R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

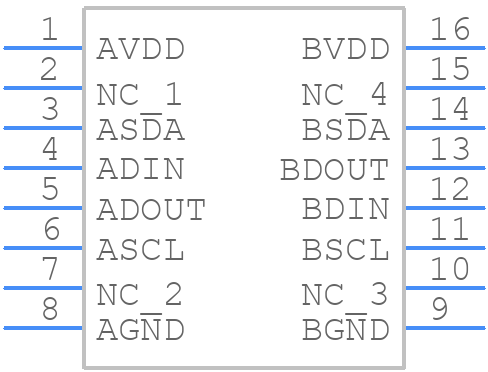

Symbol
SI8605AC-B-IS1R - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8605AC-B-IS1R - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI8605AC-B-IS1R - Skyworks - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI8605AC-B-IS1R Details

  • Manufacturer Part Number:

    SI8605AC-B-IS1R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Additional Feature:

    ALSO OPERARTES AT 5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

SI8605AC-B-IS1R Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter out high-frequency noise.
  • Ensure good thermal conductivity by using a thermal pad or thermal tape to attach the device to a heat sink or metal plate. Keep the device away from heat sources and ensure good airflow.
  • A 10nF to 100nF input capacitance is recommended to filter out high-frequency noise and ensure stable operation.
  • Check the input voltage and current, ensure proper PCB layout and decoupling, and verify that the device is operated within its recommended operating conditions. Use an oscilloscope to monitor the input and output signals.
  • Yes, the SI8605AC-B-IS1R can be used in redundant or hot-swappable configurations. However, ensure that the devices are properly synchronized and that the system is designed to handle the increased power consumption and heat generation.
