SI8606AC-B-IS1 - Skyworks

Description: Digital Isolators 3.75 kV uni- and bi-directional isolator

Download SI8606AC-B-IS1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

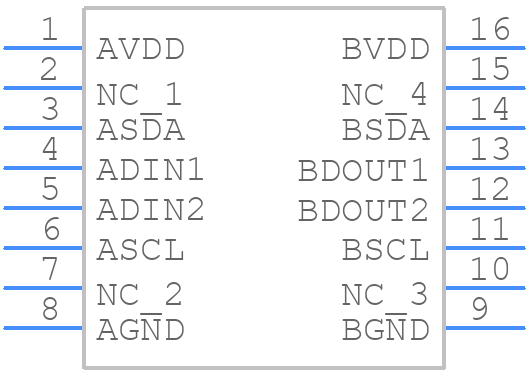

Symbol
SI8606AC-B-IS1 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8606AC-B-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI8606AC-B-IS1 - Skyworks - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI8606AC-B-IS1 Details

  • Manufacturer Part Number:

    SI8606AC-B-IS1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Additional Feature:

    ALSO OPERARTES AT 5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SI8606AC-B-IS1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • Ensure good thermal design and heat sinking. Use a thermal pad or heat sink to dissipate heat. Keep the device away from heat sources and ensure good airflow. Consider using a thermal interface material to improve heat transfer.
  • A 10uF to 22uF ceramic capacitor is recommended for input decoupling. Place the capacitor close to the device and use a low-ESR capacitor to minimize voltage ripple.
  • Use an oscilloscope to check the input and output waveforms. Verify the input voltage and current. Check for proper PCB layout and decoupling. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, but ensure that the device is used within its specified operating conditions and that the system is designed with redundancy and fault tolerance. Consult the datasheet and relevant industry standards for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8606AC-B-IS1 Overview

Use the download button to access the SI8606AC-B-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI860, or try a keyword search, such as Other Interface ICs
