SI8640BB-B-IS1 - Skyworks

Description: Digital Isolators 2.5 kV 4-channel digital isolator

Download SI8640BB-B-IS1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

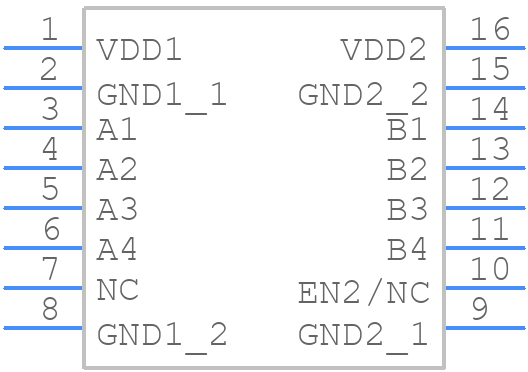

Symbol
SI8640BB-B-IS1 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8640BB-B-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI8640BB-B-IS1 - Skyworks - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI8640BB-B-IS1 Details

  • Manufacturer Part Number:

    SI8640BB-B-IS1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Additional Feature:

    Also Requires VDD2 Supply from 2.375V to 5.5V

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SI8640BB-B-IS1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A minimum of 10 mils of clearance around the device is recommended to prevent electromagnetic interference.
  • The device requires a single 3.3V power supply. A 0.1uF decoupling capacitor should be placed as close as possible to the device. The bias voltage should be filtered using a ferrite bead or a pi-filter to minimize noise.
  • The device is rated for operation from -40°C to 125°C. However, the device's performance may degrade at temperatures above 85°C. It is recommended to operate the device within the -20°C to 70°C range for optimal performance.
  • Use a logic analyzer or oscilloscope to verify the input and output signals. Check the power supply voltage and decoupling. Verify that the device is properly biased and that the PCB layout is correct. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, the device is compatible with lead-free soldering processes. However, the peak reflow temperature should not exceed 260°C to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8640BB-B-IS1 Overview

Use the download button to access the SI8640BB-B-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI864, or try a keyword search, such as Other Interface ICs
