SI8710AC-B-IS - Skyworks

Description: General Purpose Digital Isolator 3750Vrms 1 Channel 15Mbps 20kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)

Download SI8710AC-B-IS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

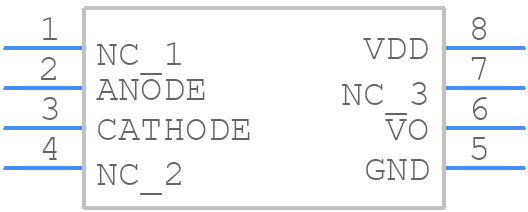

SI8710AC-B-IS - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8710AC-B-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin Narrow Body SOIC
click to zoom
3D Models
SI8710AC-B-IS - Skyworks - 3D model - Small Outline Packages - 8-Pin Narrow Body SOIC
click to zoom

SI8710AC-B-IS Details

  • Manufacturer Part Number:

    SI8710AC-B-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    30 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SI8710AC-B-IS Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
  • To ensure EMC, use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use filtering and shielding on the input/output lines. Additionally, follow the recommended PCB layout and grounding practices.
  • The maximum allowable voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input/output lines, and follow proper handling and storage procedures to prevent ESD damage.
  • The recommended operating frequency range for the SI8710AC-B-IS is 100 kHz to 500 MHz, although the device can operate up to 1 GHz with reduced performance.
