SI8920BC-IP - Skyworks

Description: Isolation Amplifiers Isolated analog amplifier with 200 mV input

Download SI8920BC-IP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

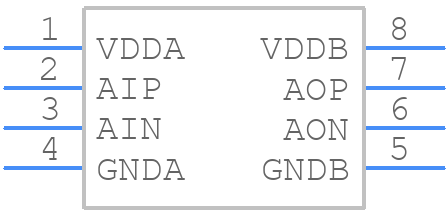

Symbol
SI8920BC-IP - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8920BC-IP - Skyworks PCB footprint - Other - Other - SI8920BC-IP-5
click to zoom
3D Models
SI8920BC-IP - Skyworks - 3D model - Other - SI8920BC-IP-5
click to zoom

SI8920BC-IP Details

  • Manufacturer Part Number:

    SI8920BC-IP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    1

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.95 MHz

  • Common Mode Voltage-Max:

    1 V

  • Isolation Voltage-Min:

    3075 V

  • JESD-30 Code:

    R-PDIP-G8

  • Length:

    9.65 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    GWDIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.19 mm

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SI8920BC-IP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and use 50-ohm transmission lines to minimize signal reflections.
  • Ensure the VCC pin is connected to a stable 5V power supply, and the VEE pin is connected to a stable -5V power supply. Also, ensure the bias resistors (RBIAS) are correctly sized to set the desired output current.
  • The SI8920BC-IP is rated for operation from -40°C to +85°C. However, it's recommended to derate the device's performance at temperatures above 70°C to ensure reliability.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the input and output impedance matching is correct, and the device is properly biased. Also, verify the power supply is stable and noise-free.
  • Yes, the SI8920BC-IP can be used in a push-pull configuration. However, ensure the output stage is properly biased and the output impedance is matched to the load to avoid oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8920BC-IP Overview

Use the download button to access the SI8920BC-IP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI892, or try a keyword search, such as Isolation Amplifiers
