Skyworks provides a recommended PCB layout guidelines in their application note AN2011-01, which includes layout recommendations for the SI8921AB-IS. Following these guidelines can help ensure optimal performance and minimize parasitic effects.
The SI8921AB-IS has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, it's essential to keep the device within a safe operating temperature range. This can be achieved by using thermal vias, heat sinks, and ensuring good airflow around the device.
The SI8921AB-IS is a high-speed digital isolator, and proper termination is crucial for signal integrity. Skyworks recommends using a 50Ω termination for both input and output signals, with a 100nF decoupling capacitor between the VDD and GND pins.
The SI8921AB-IS is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Engineers should consult the device's failure modes, fault detection, and fault tolerance capabilities to ensure it meets the specific application's requirements.
The typical propagation delay for the SI8921AB-IS is around 10ns, but this can vary depending on the specific application, operating conditions, and PCB layout. Engineers should consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8921AB-IS Overview

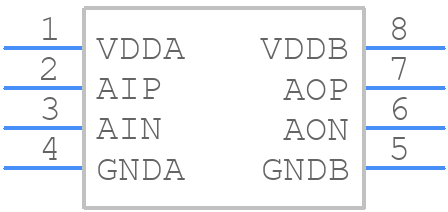

Use the download button to access the SI8921AB-IS schematic symbol, PCB footprint, and 3D model.
