The recommended PCB layout for the SI8931D-AS4 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Skyworks provides a recommended PCB layout in their application note AN2011-01.
To ensure proper biasing, the SI8931D-AS4 requires a voltage supply of 2.7V to 5.5V, and the input voltage should be AC-coupled to the device. The device also requires a bias resistor (RBIAS) connected between the VCC pin and the input pin to set the bias current. The recommended value for RBIAS is 1 kΩ to 4.7 kΩ.
The SI8931D-AS4 is designed to handle a maximum input power of +20 dBm (100 mW). Exceeding this power limit may cause damage to the device or affect its performance.
Common issues with the SI8931D-AS4 can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying the input and output impedance matching. Additionally, checking for soldering defects, component damage, or incorrect component values can help identify the root cause of the issue.
The SI8931D-AS4 is designed for high-frequency applications up to 6 GHz, making it suitable for use in wireless communication systems, such as Wi-Fi, Bluetooth, and cellular networks.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8931D-AS4 Overview

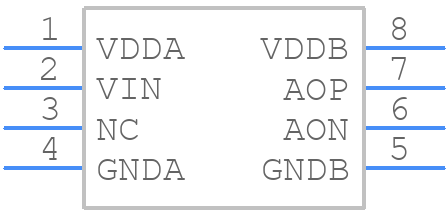

Use the download button to access the SI8931D-AS4 schematic symbol, PCB footprint, and 3D model.
