SI9987DY-T1-E3 footprint, schematic symbol and 3D model by Vishay

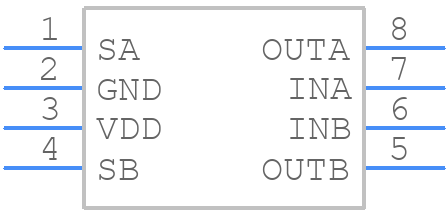

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI9987DY-T1-E3
Part Number SI9987DY-T1-E3
Manufacturer Vishay
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC (NARROW): 8-LEAD
Released Date Apr 11, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SI9987DY-T1-E3 Details

Manufacturer Part Number:
SI9987DY-T1-E3
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE, MS-012, SOIC-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Vishay Intertechnologies
YTEOL:
0
Built-in Protections:
TRANSIENT
Interface IC Type:
HALF BRIDGE BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SOURCE AND SINK
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
250
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
13.2 V
Supply Voltage-Min:
3.8 V
Supply Voltage-Nom:
4.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3.9 mm

SI9987DY-T1-E3 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the SI9987DY-T1-E3 is a 5-pin SOT23 package with a minimum pad size of 1.3 mm x 1.3 mm and a thermal pad size of 2.5 mm x 2.5 mm.
To ensure the SI9987DY-T1-E3 operates within its SOA, ensure the device is operated within the recommended voltage and current ratings, and that the junction temperature is kept below 150°C. Additionally, follow proper PCB design and thermal management practices to minimize thermal resistance and prevent overheating.
The maximum allowed voltage on the input pins of the SI9987DY-T1-E3 is 5.5V, which is the absolute maximum rating. However, for normal operation, the recommended input voltage range is 2.7V to 5.5V.
Yes, the SI9987DY-T1-E3 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is suitable for use in harsh environments.
To prevent electrostatic discharge (ESD) damage, handle the SI9987DY-T1-E3 with proper ESD protection equipment, such as wrist straps, mats, and bags. Ensure the device is stored in a static-safe environment and follow proper handling procedures to minimize the risk of ESD damage.

Trust Checks

Expert Contribution

System Verified

Community Approved

SI9987DY-T1-E3 Overview

Use the download button to access the SI9987DY-T1-E3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI998, or try a keyword search, such as Peripheral Drivers
