SIB-123-02-F-S-LC footprint, schematic symbol and 3D model by SAMTEC

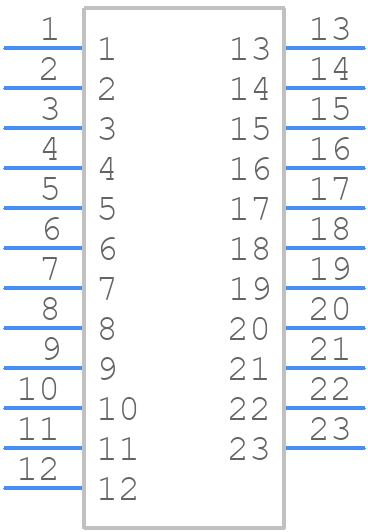

Symbol

click to zoom

PCB Footprints

SIB-123-02-F-S-LC - SAMTEC PCB footprint - Other - Other - SIB-123-02-F-S-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIB-123-02-F-S-LC
Part Number SIB-123-02-F-S-LC
Manufacturer SAMTEC
Pin Count 23
Part Category Connector
Package Category Other
Footprint Name Other - SIB-123-02-F-S-LC
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIB-123-02-F-S-LC Details

Manufacturer Part Number:
SIB-123-02-F-S-LC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 4 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.264 inch
Body Depth:
0.15 inch
Body Length:
2.3 inch
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
COMPRESSION
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
FLASH inch
Rated Current (Signal):
2.6 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
23

SIB-123-02-F-S-LC Frequently Asked Questions (FAQs)

The recommended mating sequence for SIB-123-02-F-S-LC is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the SIB-123-02-F-S-LC is designed to withstand high-vibration environments. Samtec's SIB series connectors are tested to meet the requirements of IEC 61373, which includes vibration testing.
The maximum operating temperature for SIB-123-02-F-S-LC is 125°C. However, it's recommended to derate the current carrying capacity of the connector at higher temperatures to ensure reliable operation.
The SIB-123-02-F-S-LC has a sealed design that provides some level of protection against moisture. However, it's not designed for immersion in water or exposure to high-pressure water jets. If you need a connector for a wet environment, consider using a connector with a higher IP rating or additional sealing measures.
The recommended torque for the screws on SIB-123-02-F-S-LC is 0.5-1.5 N·m (4-12 in·lb). Over-torquing can damage the connector or the PCB, so it's essential to follow the recommended torque specification.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SIB-123-02-F-S-LC Overview

Use the download button to access the SIB-123-02-F-S-LC schematic symbol and PCB footprint.
